Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65
Mfr # KS88026267
Zoro # G015401141
Specifications
Product Information
Description

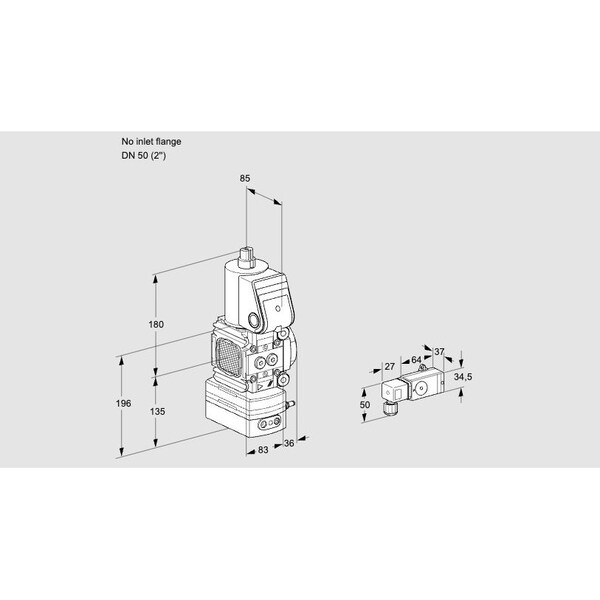

The HONEYWELL KROMSCHRODER VAD3-/50R/NW-100A is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane as specified by manufacturer guidelines. It features an outlet with DN 15 (1/2'') Rp internal thread, operates at a maximum inlet pressure of 500 mbar (7 psig), and provides an adjustable outlet pressure range from 35 to 100 mbar.
Key features include:
- Integrated pilot lamp for status indication
- Electrical connection via M20 cable gland; mains voltage: 24 V DC
- Features rapid actuation mechanism
- IP65 rated enclosure for ingress protection
- FM and SA approved; EU certified
- No inlet flange; right-side accessories include a pressure switch (30–110 mbar) with test point on the outlet side, left-side includes two screw plugs
- Valve seat reduced design
