Gas Pressure Regulator with Solenoid Valve, 24V DC, DN15, IP65 Rated

The HONEYWELL KROMSCHRODER VAD1-/20R/NW-100A is a pressure regulator intended for use in applications involving the regulation and monitoring of gas pressure, as specified by manufacturer guidelines. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161). It features an outlet with DN 15 (1/2") Rp internal thread, operates at mains voltage of 24 V DC, and includes a pilot lamp for status indication.

Key features:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism as per manufacturer’s technical data
• Electrical connection via M20 cable gland; attached to right side of connection box
• IP65 rated enclosure
• FM and SA approved; EU certified

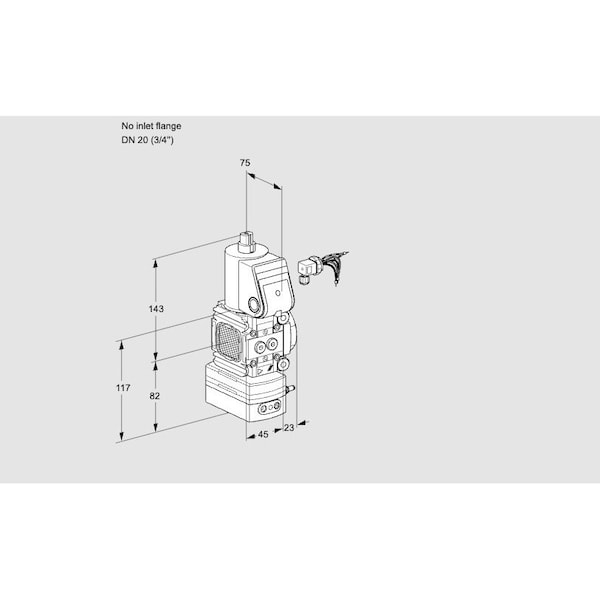

• No inlet flange; size 1 configuration
• Valve seat reduced design
• Accessories include right-side pressure switch (30–110 mbar) with test point on outlet side; left-side has two screw plugs
