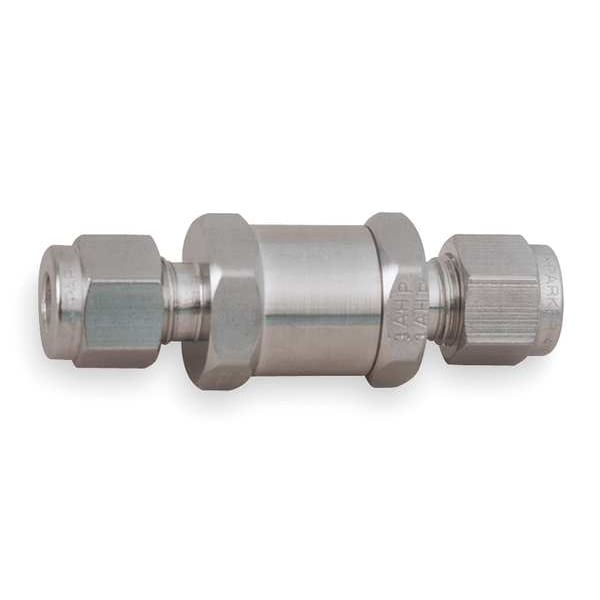

1/2" A-LOK(R) Stainless Steel Instrumentation Check Valve

  • Mfr # 8A-C8L-10-SS
  • Zoro # G1749937
product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Hex Size
1 1/4 in
Connection Type
Compression x Compression
Connection
A-LOK(R)
Body Material
316 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8A-C8L-10-SS
Zoro #
G1749937
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1 1/4 in
Pipe or Tube Size - Check Valves
1/2 in
Size
1/2"
Length
4 1/16 in
Overall Length
4.08 in
Pipe or Tube Size
1/2 in
Connection Size - Side 1
1/2 in
Connection Size - Side 2
1/2 in
Nominal Valve Size
1/2 in
Wire Rope Length
4.08 in

Details

Connection Type
Compression x Compression
Connection
A-LOK(R)
Body Material
316 Stainless Steel
Seat Material
FKM
Body Material - Valves
316 Stainless Steel
Spring Material
316 Stainless Steel
Application - Valves
Corrosives
Flow Design
Single
Max. Water Pressure
6000 psi CWP
Seal Material - Check Valves
Fluorocarbon
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Item
Instrumentation Check Valve
Full Flow - Valves
No
Min. Temp. - Valves
-15 Degrees F
Max. Water Pressure - Valves
6000 psi @ 100 Degrees F
Sub-Category
Stainless Steel
Max. Temp.
-15 Degrees to 400 Degrees F
Flow - Valves
3.3 gpm
Max. Temp. - Valves
400 Degrees F
Spring Material - Check Valves
316 Stainless Steel
Material of Construction
316 Stainless Steel
Max. Steam Pressure - Valves
Not Rated
Connection Type - Check Valves
Compression x Compression
Mechanism and Body Design
Inline Poppet
Seat Material - Check Valves
Fluorocarbon
Standards
ASTM A 276
Flow
3.3 GPM
Cracking Pressure - Check Valves
10.0 psi
Cracking Pressure
10 psi
Seal Material
FKM
Mounting Orientation
Horizontal, Vertical
Silent Check
Standard
Connection Type - Side 1
Compression
Operating Temperature - Maximum
400 Degrees F
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
6,000 psi
3-A Standard Compliance
Not Rated
For Media
Fluids, Gas
Operating Temperature - Minimum
-15 Degrees F
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Check Mechanism
Poppet
Connection Type - Side 2
Compression
Coefficient of Volume (Cv)
3.3
Type
Instrumentation
Valve Series
C

Description

PARKER 8A-C8L-10-SS is a 1/2 in instrumentation check valve for one-way flow control in small-bore fluid and gas lines. This inline poppet valve uses A-LOK® compression x compression connections, is constructed with a 316 stainless steel body and 316 stainless steel spring, and provides check-valve function for reverse-flow control in instrument and process systems.

Key Features:

  • 1/2 in nominal valve size with 1/2 in compression connections on both ends
  • Inline poppet mechanism with single-flow design
  • 316 stainless steel body and 316 stainless steel spring
  • For fluids and gas media
  • 10 psi cracking pressure
  • 3.3 gpm flow capacity with Cv of 3.3
  • Maximum operating pressure: 6,000 psi; maximum water pressure: 6,000 psi at 100°F
  • Operating temperature range: -15°F to 400°F
  • FKM/fluorocarbon seal material
  • FKM/fluorocarbon seat material
  • Horizontal or vertical mounting orientation
  • 4.08 in overall length; 1 1/4 in hex size
  • ASTM A276 standard
