Gas Pressure Regulator with Solenoid Valve, 25mm, 24V DC, IP65

The HONEYWELL KROMSCHRODER VLV, SOLND, PRESS REG, 25MM RP, VAD1 /25R/N is a solenoid valve intended for use in applications involving regulation and control of gas pressure. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane as specified. It features rapid actuation and includes an equipped with a pilot lamp that indicates operational status.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage: 24 V DC
• Protection rating: IP65
• Approvals: FM and SA approved; EU certified
• Accessories include right-side pressure switch (30–110 mbar) with test point; left side has two screw plugs

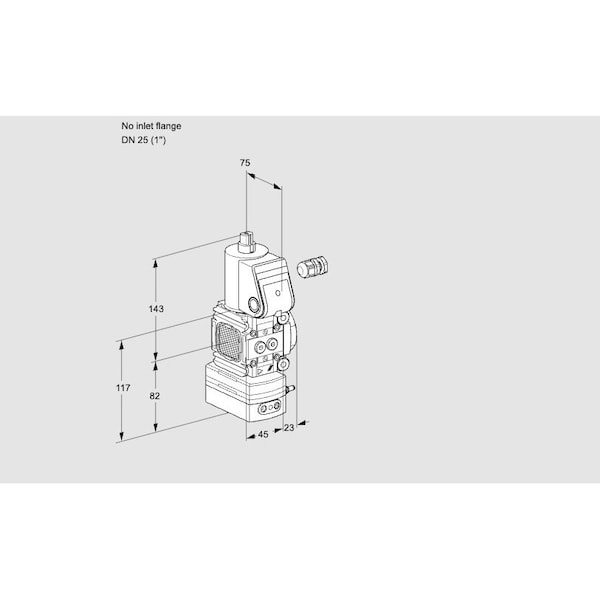

• No inlet flange included
