Gas Pressure Regulator with Solenoid Valve, DN 15, 24V DC, IP65

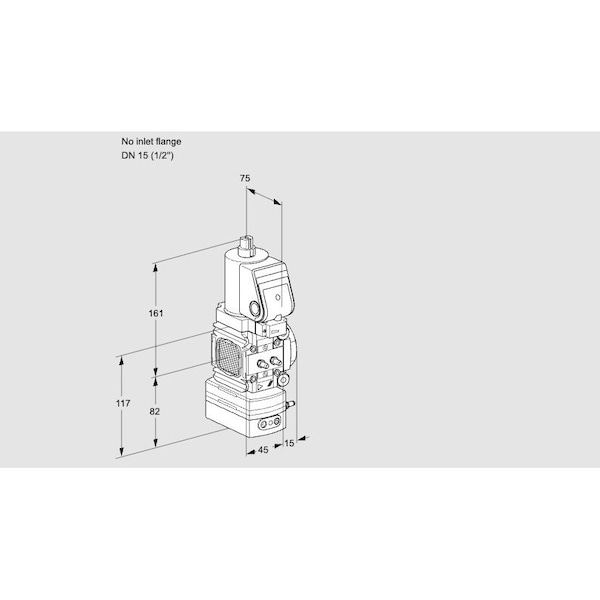

The HONEYWELL KROMSCHRODER VAD1T-/15N/NQSR-50B is a pressure regulator intended for regulation and control of gas pressure in accordance with manufacturer specifications. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features an outlet connection of DN 15 (1/2" Rp internal thread) without an inlet flange, supports mains voltage at 24 V DC, and includes electrical connections via M20 cable gland.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Features rapid actuation mechanism
• Pilot lamp indicator
• IP65 rated enclosure
• FM and SA approvals; EU certified
• Size 1 configuration
• Valve seat reduced design
• Right-side accessories: Pressure switch (30–110 mbar), test point for outlet pressure; left-side accessories: two screw plugs
