Gas Pressure Regulator with Solenoid Valve, DN 15, 500 mbar, 24V DC
Mfr # KS88007646
Zoro # G215402160
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAD3-/50R/NW-50A is a pressure regulator intended for use in applications requiring control and regulation of gas pressure within specified parameters. This unit integrates both a Class A pressure regulator to EN 88 standards and a Class A solenoid valve to EN 161, making it compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. It features an outlet with DN 15 (1/2'') Rp internal thread connection and operates at a maximum inlet pressure of 500 mbar (7 psig). The device includes a pilot lamp for status indication and features a mechanism capable of rapid actuation as per product specifications.
Key features:
- Outlet: DN 15 (1/2'') Rp internal thread
- Maximum inlet pressure: 500 mbar (7 psig)
- Outlet pressure range: 35–100 mbar
- Mains voltage: 24 V DC; electrical connection via M20 cable gland
- IP65 rated enclosure
- FM and SA approved; EU certified
- Quick opening/closing action
- Integrated pilot lamp indicator

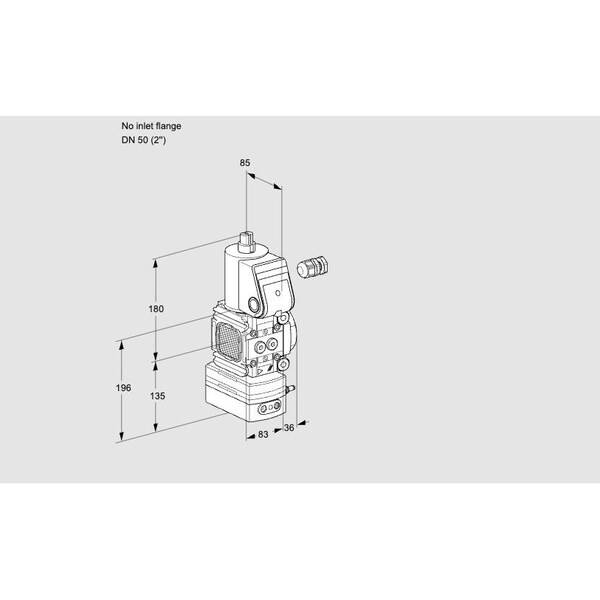

- No inlet flange included
- Valve seat reduced design; size 1 configuration
