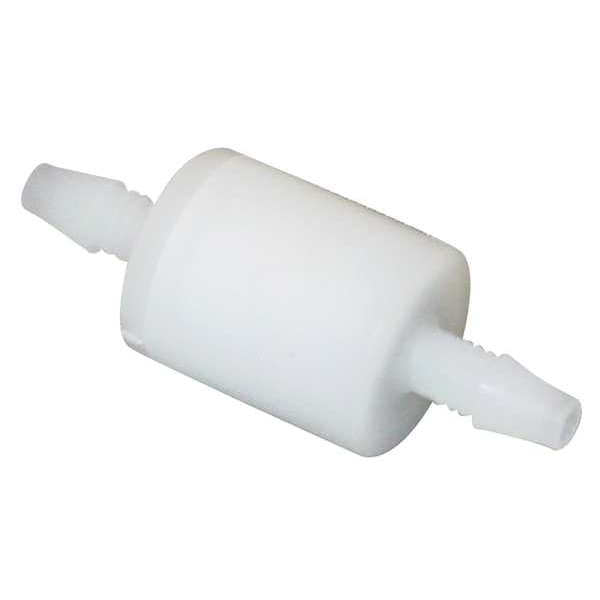

1/8" Barb Polypropylene Ball Cone Spring Check Valve

  • Mfr # PP CHK 695-2B2B-F
  • Zoro # G1206432
product price:
$
6.79
/ea

Key Features

Pipe Size
1/8"
Connection Type
Barb x Barb
Connection
Barb
Body Material
Polypropylene
Body Material - Valves
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PP CHK 695-2B2B-F
Zoro #
G1206432
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/8"
Width
1/2"
Length
1-3/8"
Size
1/8"
Overall Height
1/2"
Pipe or Tube Size - Check Valves
1/8"
Overall Length
1.38 in
Pipe or Tube Size
1/8 in
Connection Size - Side 1
1/8 in
Connection Size - Side 2
1/8 in
Nominal Valve Size
1/8 in
Height - Cap to Inlet Center
2 5/16 in
Wire Rope Length
1.38 in

Details

Connection Type
Barb x Barb
Connection
Barb
Body Material
Polypropylene
Body Material - Valves
Polypropylene
Flow Design
Single
Full Flow - Valves
Yes
Item
Ball Cone Spring Check Valve
Max. Steam Pressure - Valves
Not Rated
Mounting Orientation - Check Valves
Horizontal, Vertical
Spring Material - Check Valves
Stainless Steel
Spring Material
Stainless Steel
Material of Construction
polypropylene
Cracking Pressure
1 psi
Seat Material - Check Valves
Polypropylene
Cracking Pressure - Check Valves
1.000 psi
Seat Material
Polypropylene
Mounting Position
Vertical or Horizontal
Connection Type - Check Valves
Barb x Barb
Mechanism and Body Design
Inline Ball Cone
Max. Water Pressure
125 psi
Cap to Inlet Center
2-5/16"
Max. Water Pressure - Valves
125 psi
Min. Temp. - Valves
-20 Degrees F
Max. Pressure
125 psi
Seal Material
FKM
Max. Temp.
140 Degrees F
Sub-Category
Polypropylene
Seal Material - Check Valves
Viton
Max. Temp. - Valves
140 Degrees F
Item - Check Valves
Check Valve
Application - Valves
General Purpose
Mounting Orientation
Horizontal, Vertical
Seal
PTFE
Type
Ball Cone Design
Vacuum Service Rating
Not Rated
Check Mechanism Material
Stainless Steel
Silent Check
Standard
Connection Type - Side 1
Barb
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Check Mechanism
Ball
Operating Temperature - Maximum
140 Degrees F
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
0.2
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
125 psi
For Media
Air, Fluids
Connection Type - Side 2
Barb
Valve Series
695

Description

ZORO SELECT 695 series ball cone spring check valve with an inline configuration and polypropylene body. It is configured for one-direction flow applications with a spring check mechanism. The valve features 1/8 in barb x barb connections and is specified for air and fluid media in piping or tubing systems using 1/8 in barb connections. It has a 1 psi cracking pressure, a full-flow design, and a mounting orientation of horizontal or vertical.

Key Features:

  • Valve type: Ball cone spring check valve with inline ball cone design
  • Body material: Polypropylene
  • Connection size: 1/8 in x 1/8 in
  • Connection type: Barb x Barb
  • Media: Air, Fluids
  • Cracking pressure: 1 psi
  • Maximum operating pressure: 125 psi
  • Operating temperature range: -20 degrees F to 140 degrees F
  • Check mechanism: Ball with stainless steel internal mechanism and stainless steel spring
  • Seal materials: FKM/Viton, PTFE
  • Seat material: Polypropylene
  • Flow design: Single, full flow
  • Mounting orientation: Horizontal or Vertical
  • Cv: 0.2
  • Overall length: 1.38 in
