Gas Pressure Regulator with Solenoid Valve, DN15, 35–100 mbar, 24V DC

The HONEYWELL KROMSCHRODER VAD1-/20R/NW-100A is a pressure regulator intended for use in applications involving control and monitoring of gas pressure within specified parameters. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161). It features an outlet with DN 15 (1/2'') Rp internal thread and operates within an outlet pressure range of 35–100 mbar.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Features rapid actuation mechanism as per product specifications
• Mains voltage: 24 V DC; electrical connection via M20 cable gland
• IP65 rated enclosure
• FM and SA approvals; EU certified
• Integrated pilot lamp for status indication

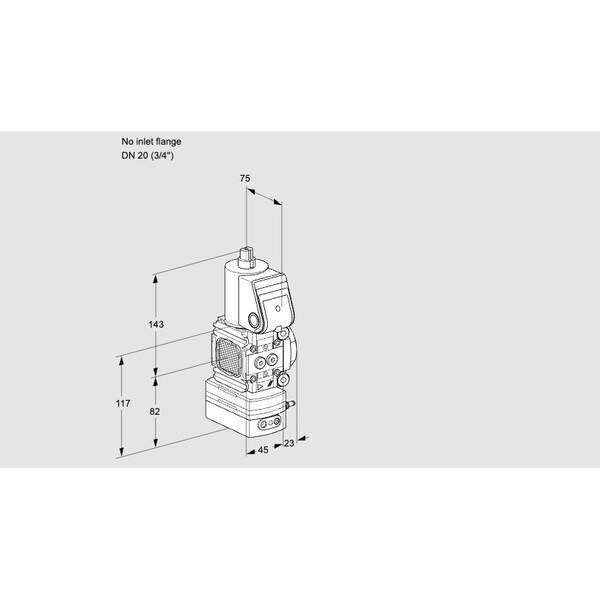

• Size 1 configuration without inlet flange
• Right-side accessories: pressure switch (30–110 mbar) with test point at outlet; left-side accessories: two screw plugs
