Gas Pressure Switch - Adjustable, DG Series, EU/US Models

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 6BG 3K2 is a gas pressure switch rated for use with positive gas and air pressures, as well as negative and differential air pressures. This device includes an adjustable switching point via a setting dial and operates with media such as gas, air, and flue gases. The DG series includes both European (DG) and US (DG..T) versions to accommodate different regional standards.

Key features:

• Includes an adjustable switching point via a setting dial
• Compatible with gas, air, and flue gases in positive pressure; compatible with air and flue gases in negative/differential pressure applications
• Available in EU-certified (AGA, EAC approved), RoHS-compliant version or UL Listed/FM Approved US version
• Pressure range: 0.4 to 500 mbar (European model); 0.2 to 200" WC (US model)

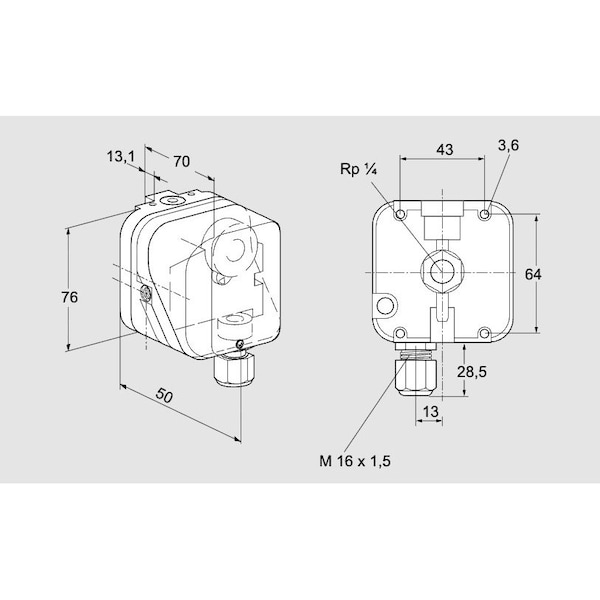

• Pneumatic connections: Internal Rp 1/8" & Rp 1/4" (EU); NPT options available on US models
• Electrical contacts: Silver or gold contacts supporting various voltage/amperage ratings
• Multiple electrical connection types including screw terminals, cable glands/conduits, and plug/socket options
