Gas Solenoid Valve – Class A, 500 mbar, IP65, EN 161 Certified

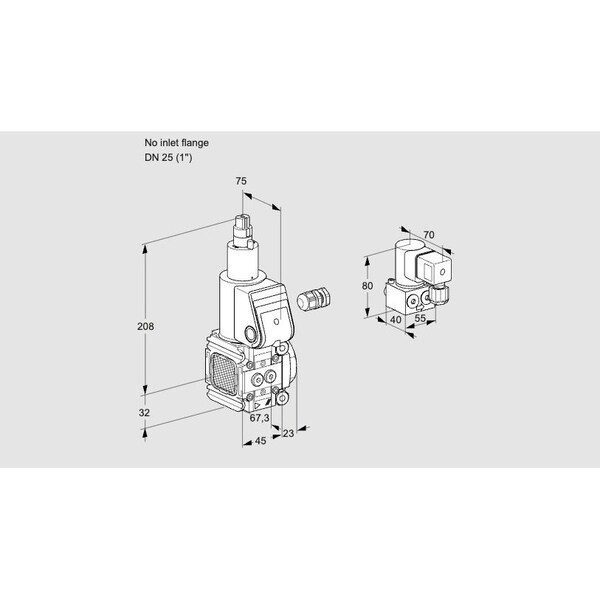

The HONEYWELL KROMSCHRODER VAS1-/25R/LW is a Class A solenoid valve intended for use in the automatic shut-off of gas and air lines. This unit conforms to EN 161 standards, remaining closed when de-energized, and supports a maximum operating pressure of 500 mbar. It features an integrated pilot lamp for status indication and adjustable flow rate capability. The valve carries EU certification as well as FM and CSA approvals, supporting use in systems up to SIL 3 and PL e.

Key features include:

• Valve sizes available from 1 to 9; DN (nominal diameter) range: 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening & closing or slow opening & quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• IP65 rated enclosure for ingress protection
• Versions available with position indicator, fitted bypass/pilot gas valve, or fitted pressure switches
