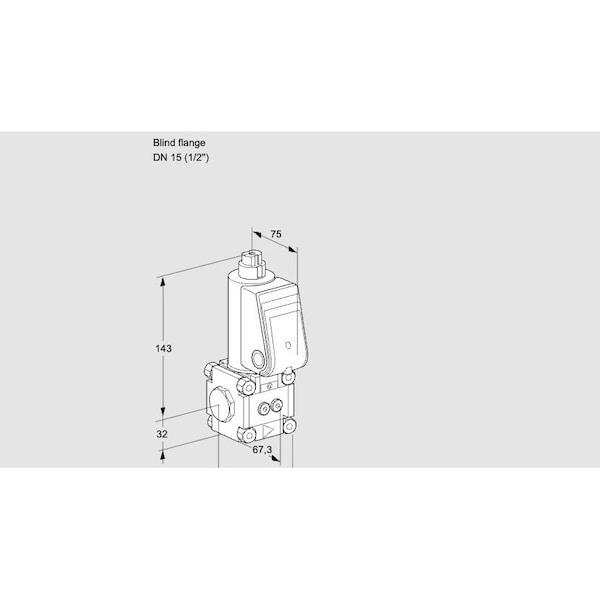

Solenoid Gas Safety Valve – VAS-VCS, Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS1-0/15R/NW is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. It operates according to EN 161 standards, is configured to be closed when not energized, and is rated for a maximum operating pressure of 500 mbar. The unit includes an integrated pilot lamp and flow adjustment, with an IP65 rating for ingress protection. It holds certification according to SIL 3 and PL e standards, as well as EU certification along with FM and CSA approvals.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, or fitted pressure switches DG../VC
