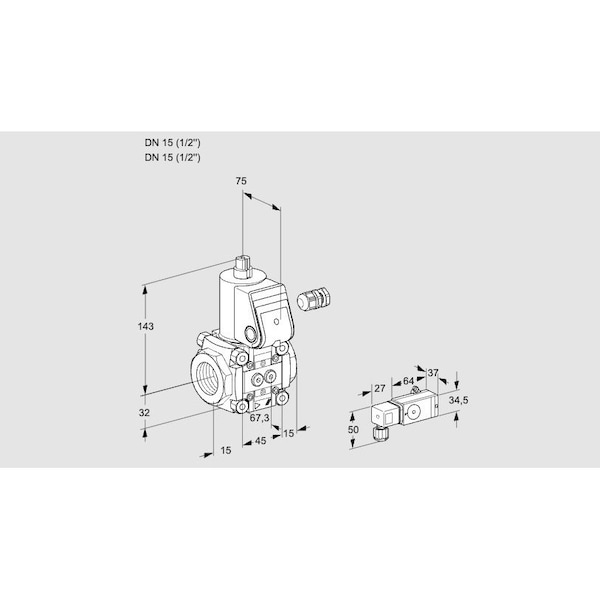

Solenoid Gas Safety Valve - VAS115R/NQ, 500 mbar, IP65, EN 161

The HONEYWELL KROMSCHRODER VAS115R/NQ is a Class A solenoid gas safety valve intended for use as a shut-off valve in gas and air systems. It is compliant with EN 161 standards, remains closed when not energized, and is rated for a maximum operating pressure of 500 mbar. The unit includes pilot lamp and adjustable flow settings, with an IP65 rating for ingress protection. It is certified under applicable EU, FM, and CSA requirements and suitable for installation in systems requiring up to SIL 3 or PL e certification.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
