Solenoid Valve for Gas, Class A, 500 mbar, IP65, EN 161 Compliant

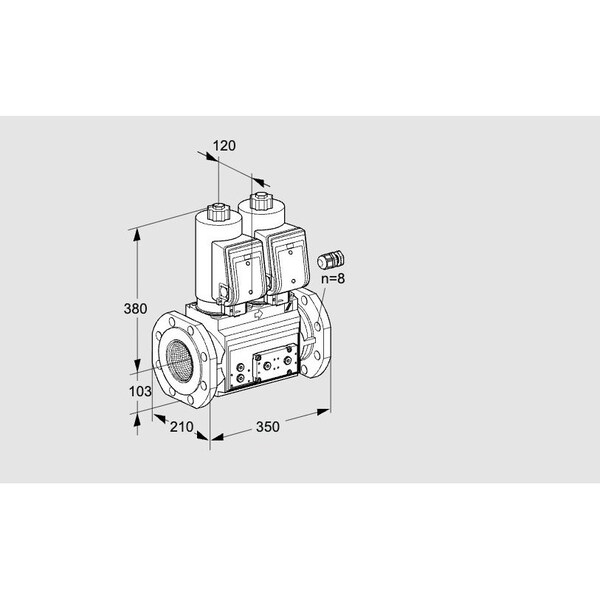

The HONEYWELL KROMSCHRODER VCS8100F05NNWSR3E/PPPP/PPPP is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow. It is rated to comply with EN 161 standards; the valve is normally closed when not energized, and has a maximum rated operating pressure: 500 mbar. The unit includes pilot lamp indicator and adjustable flow settings, with an IP65 rating for ingress protection. It holds certification for application in systems with requirements up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening & closing or slow opening & quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator (visual), fitted bypass/pilot gas valve, or fitted pressure switches
