4" FNPT SS Threaded Flange
Mfr # 4381004480
Zoro # G3265717
product price: $234.99
/ea
Free Shipping & Returns
Key Features
Pipe Size - Pipe Fitting
4"
Specific Fitting Shape
Flange
Pipe Fitting Material
Forged 304 Stainless Steel
Fitting Connection Type
FNPT
Fitting Schedule/Class
Class 300
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4381004480
Zoro #
G3265717
UPC #
-
Country of Origin
Viet Nam
Dimensions
Pipe Size - Pipe Fitting
4"
Outside Dia.
10"
Pipe Size (Fittings)
4"
Pipe Size
4"
Flange Outside Diameter
10 in
Nominal Pipe Size
4 in
Bolt Circle Diameter
7 7/8 in
Flange Thickness
1 1/4 in
Overall Length
1 7/8 in
Bolt Hole Diameter
7/8 in
Description

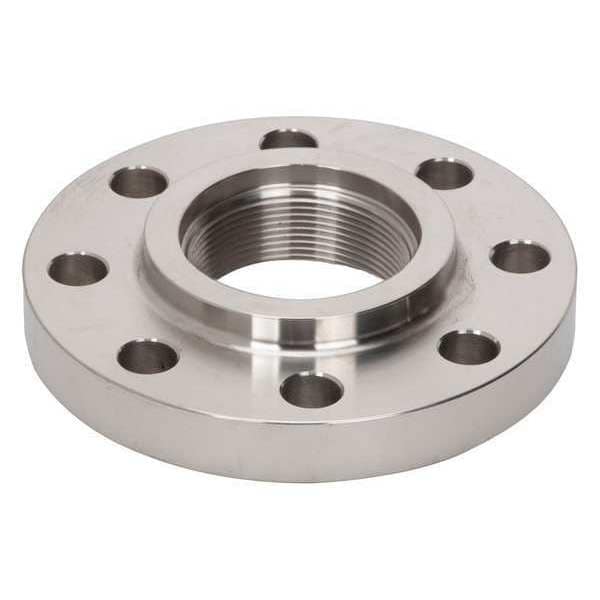

The ZORO SELECT - 4381004480 is a forged threaded flange made from 304/304L forged stainless steel. It features internal threads that screw onto the male threads of a pipe, enabling bolted flange connections without welding. It is made from 304/304L forged stainless steel. It is designed for use with 4-inch nominal pipe size and incorporates a raised face connection surface.
Key Features:
- Pipe fitting connection type: FNPT (Female National Pipe Thread)
- Pressure rating: Class 300, with a maximum operating pressure of 720 psi
- Maximum steam pressure: 300 psi
- Flange outside diameter: 10 in
- Flange thickness: 1 1/4 in
- Bolt circle diameter: 7 7/8 in
- Number of bolt holes: 8, each with a diameter of 7/8 in
- Overall length: 1 7/8 in
- Conforms to standards ASTM-SA182, ANSI B16.5, and ASME B1.20.1
