  15. Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

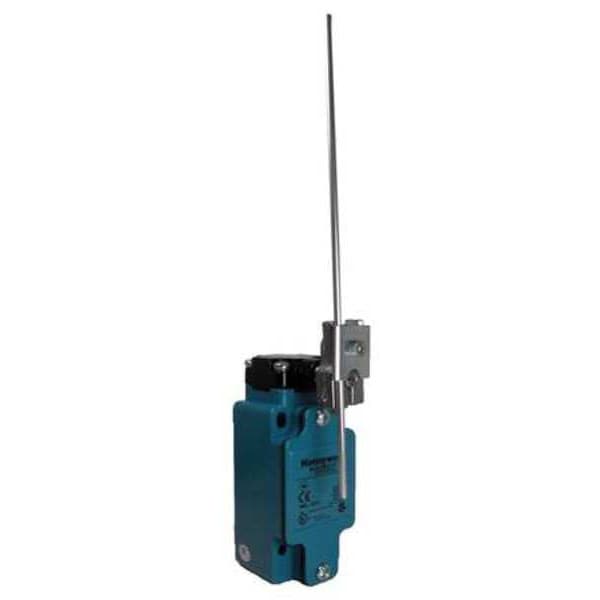

Honeywell Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side GLAA01A4J - main

Limit Switch, Adjustable Rod, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # GLAA01A4J

  • Zoro # G4026057

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GLAA01A4J
Zoro #
G4026057
UPC #
078454931508
Country of Origin
United States

Dimensions

Width
1.65"
Body Depth - Limit Switch
1.65 in
Body Height - Limit Switch
3.23 in
Actuator Length
7.36"
Depth
1.65"
Body Width - Limit Switch
1.65 in
Actuator Length - Limit Switch
7.36 in
Height
3.23"
Connection Size
1/2 in. NPT
Body Width
1.65 in
Mounting Hole Diameter
0.21 in
Body Height
3.23 in
Body Depth
1.65 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Travel
Differential Travel 12 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 59 Degrees , Operating Position 26 Degrees
Actuator Location (Limit Switch)
Side
Limit Switch Style
General Purpose Limit Switch
Standards
CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL509
Voltage Rating
600VAC/250VDC
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
DC Contact Rating
10A at 250V
Number of Poles
1
Contact Form - Limit Switch
1NC/1NO
NEMA Rating
1, 12, 13, 4
Operating Temp. Range
-13 Degrees to 185 Degrees F
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
IP Rating
67
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
Actuator Style (Limit Switch)
Rotary, Adjustable Rod
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location
Side
Wiring Entry
1/2 in NPT
Contact Form
1NC/1NO, SPDT
Electrical Connection
Screw Terminals
Movement
CCW, CW
Arm Material
Metal
Operating Force
2.9 in-lb
Body Style (Limit Switch)
Standard
Series
GLA/GLS
Amps
10
Actuator Style
Rotary Lever Arm
Mounting Hole - Limit Switch
(4) 0.21 in dia
Body Material
Zinc Die Cast
AC Contact Rating
10A at 600V
Connection Type
Threaded Entry
Differential Travel
8 Degrees
Head/Operator
Side Rotary Rod Lever
Head Action
Spring Return, Standard
Electrical Rating - VAC/DC
10A 600VAC (VDC Rated)
Current Rating - nominal
10A
Pre-Travel - Travel To Operate
26 deg PT
Over-Travel/Total-Travel
59 deg OT
Operating Temperature - min
-13 deg F (-25 deg C)
Operator Configuration
Adjustable
Poles/Contacts
SPDT 1NO 1NC
Travel Direction
CW or CCW
Differential-Travel - Travel To Reset
26 deg PT
Operating Temperature - max
185 deg F (85 deg C)
Body Construction
Die Cast Zinc
Rating - NEMA
NEMA 4
Number of Mounting Holes
4
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface
Body Configuration
Non Plug-In
Pretravel
26 Degrees
Overtravel
59 Degrees
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 12, 13, 4
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
2.9 in-lb
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
185 Degrees F

Description

Non Plug-In Limit Switch, Actuator Style - Limit Switch Adjustable Rod, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 7.36 in, Body Height - Limit Switch 3.23 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.65 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 4
