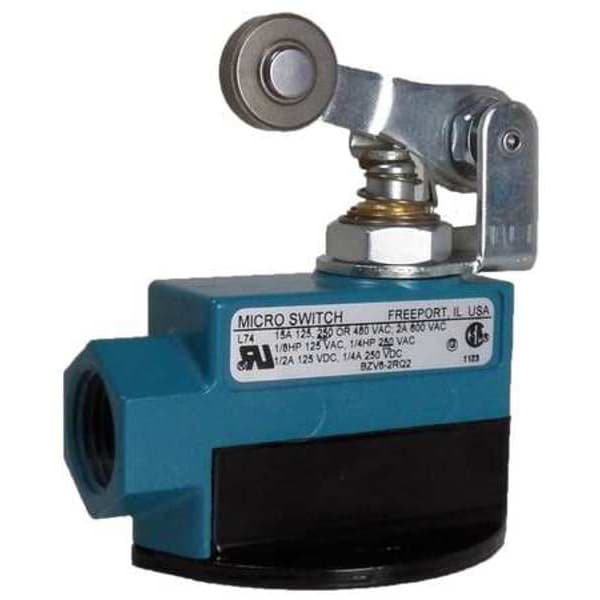

Limit Switch - BZV6, SPDT, Roller Lever, 15A 600V AC, IP66, Zinc Body
Mfr # BZV6-2RQ2
Zoro # G4132371
product price:
$
173.99
/ea
Free Shipping & Returns
Key Features
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BZV6-2RQ2
- Zoro #
- G4132371
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Height
- 2.50"
- Roller Width
- 0.25 in
- Body Depth - Limit Switch
- 1.0 in
- Width
- 1.00"
- Actuator Length
- 0.91"
- Depth
- 3.04"
- Body Height - Limit Switch
- 1.75 in
- Roller Dia.
- 0.75 in
- Actuator Length - Limit Switch
- 0.91 in
- Body Width - Limit Switch
- 3.04 in
- Overall Width
- 3.04 in
- Body Depth
- 1 in
- Body Width
- 3.04 in
- Roller Diameter
- 0.75 in
- Body Height
- 1.75 in
- Overall Depth
- 1 in
- Mounting Hole Diameter
- 0.17 in
Description
Honeywell’s BZ Series Limit Switch features a plunger with horizontal roller lever actuator, suitable for a range of applications as specified by the manufacturer. The switch is constructed with a zinc die cast miniature body and steel arm, featuring compact dimensions; refer to installation guidelines for suitability in specific spaces. It provides single pole double throw (SPDT) switching action with 1 normally closed (NC) and 1 normally open (NO) contact configuration.
Key Features:
- AC Contact Rating: 15A at 600V
- DC Contact Rating: 2A at 250V
- Actuator Style: Plunger, Roller Lever; Horizontal orientation
- Actuator Length: 0.91 in; Roller Diameter: 0.75 in; Roller Width: 0.25 in
- Body Dimensions: Height – 1.75 in, Depth – 1 in, Width – 3.04 in
- Mounting Style: Bottom flange with two mounting holes (0.17 in diameter), spaced horizontally at 1.63 in center-to-center distance
- Electrical Connection: Screw terminals; Wiring Entry – 1/2 in NPT
- Operating Force Range: Minimum –10 ozf, Maximum –18 ozf; Release Force minimum –6 ozf
- Travel Parameters: Differential travel –0.01 in, Pretravel –0.19 in, Overtravel –0.22 in
- Temperature Range: -25°F to +160°F
- Protection Ratings: IP66 enclosure rating; NEMA Type 1
- Standards Certifications: CSA and UL
