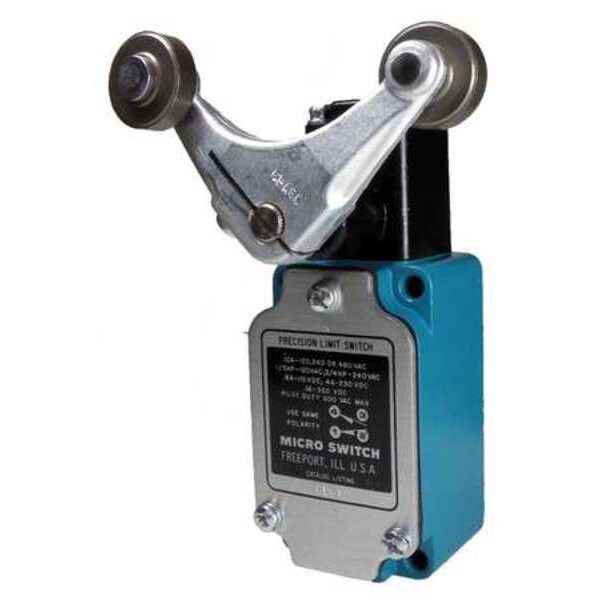

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 480V AC, Actuator Location: Side

  • Mfr # 6LS1
  • Zoro # G3930297
product price:
$
447.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6LS1
Zoro #
G3930297
UPC #
-
Country of Origin
United States

Dimensions

Depth
1.13"
Body Width - Limit Switch
1.19 in
Height
4.05"
Actuator Length
1.5 in
Width
1.19"
Body Depth - Limit Switch
1.13 in
Roller Width
0.25 in
Roller Dia.
0.75 in
Body Height - Limit Switch
2.7 in
Actuator Length - Limit Switch
1.5 in
Connection Size
1/2 in. NPT
Body Width
1.57 in
Overall Height
3.05 in
Overall Width
1.57 in
Body Height
2.7 in
Arm Length - Maximum
1.5 in
Body Depth
1.13 in
Roller Diameter
0.75 in
Overall Depth
2.3 in
Mounting Hole Diameter
4.88 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole - Limit Switch
(4) 0.19 in dia
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Wiring Entry
1/2 in NPT
Boot Sealed Actuator - Limit Switch
No
DC Contact Rating
0.1 A @ 550 V, 0.4 A @ 230 V, 0.8 A @ 115 V
Actuator Location
Side
Travel
Differential Travel 20 Degrees , Maximum Pretravel 55 Degrees , Minimum Over Travel 35 Degrees
Actuator Style (Limit Switch)
Rotary, Roller Lever
Operating Force
2.0 in-lb
Body Material
Metal
Contact Form
1NO/1NC
Number of Poles
1
IP Rating
IP67
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
480V AC
Actuator Location (Limit Switch)
Side
NEMA Rating
1, 13, 3, 4, 6
Amps
10
Stem Thread - Limit Switch
No Stem
Actuator Style
Forked Roller-Lever
AC Contact Rating
10 A @ 120 V, 10 A @ 240 V, 10 A @ 480 V
Movement
Maintained, Rotary
Operating Temp. Range
-20 Degrees to 160 Degrees F
Standards
CE
Arm Material
Steel
Series
LS
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole Spacing - Limit Switch
2.31 in x 1.19 in
Contact Form - Limit Switch
1NC/1NO
Limit Switch Style
General Purpose Limit Switch
Body Style (Limit Switch)
Miniature
Roller Material
Steel
Electrical Connection
Screw Terminals
Differential Travel
20 Degrees
Connection Type
Threaded Entry
Poles/Contacts
SPDT 1NO 1NC
Electrical Rating - VAC/DC
10A 480Vac (Vdc Rated)
Body Construction
Die Cast Zinc
Differential-Travel - Travel To Reset
20 deg DT
Pre-Travel - Travel To Operate
55 deg PT
Head/Operator
Side Rotary Yoke Roller Lever
Travel Direction
CW or CCW
Over-Travel/Total-Travel
35 deg OT
Operating Temperature - max
160 deg F (71 deg C)
Operator Configuration
Fork Type
Current Rating - nominal
10A
Operating Temperature - min
-20 deg F (-29 deg C)
Type
Compact Limit Switch
Rating - NEMA
NEMA 4,6
Head Action
Maintained, 2-Position
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm
Pretravel
55 Degrees
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
160 Degrees F
Mounting Style
Surface
NEMA Enclosure Rating
1, 13, 3, 4, 6
Number of Mounting Holes
4
Action
Maintained
Operating Torque - Maximum
3 in-lb
Body Configuration
Non Plug-In
Mounting Hole Horizontal Center to Center Distance
30 mm
Overtravel
35 Degrees
Pre-Travel - Rotary
55 Degrees
Over Travel - Rotary
35 Degrees
Differential Travel - Rotary
20 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.5 in, Body Height - Limit Switch 2.7 in, Body Width - Limit Switch 1.19 in, Body Depth - Limit Switch 1.13 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 13, 3, 4, 6
