  15. Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

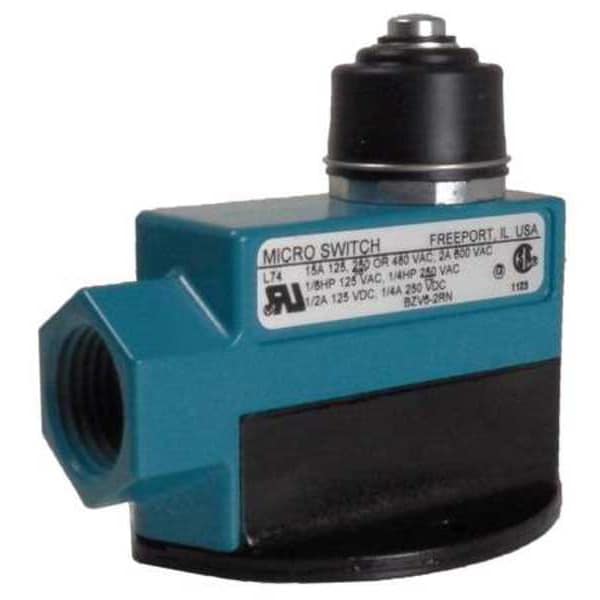

Honeywell Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top BZV6-2RN - main

Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # BZV6-2RN

  • Zoro # G4323261

product price: $138.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZV6-2RN
Zoro #
G4323261
UPC #
-
Country of Origin
United States

Dimensions

Depth
3.04"
Height
2.50"
Actuator Length
0.97"
Width
1.00"
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
3.04 in
Body Depth - Limit Switch
1.0 in
Actuator Length - Limit Switch
0.97 in
Body Height
1.75 in
Overall Depth
1 in
Body Depth
1 in
Body Width
3.04 in
Overall Width
3.04 in
Mounting Hole Diameter
0.17 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Bottom Flange
Actuator Style
Plunger
Body Material
Metal
Actuator Location (Limit Switch)
Top
Actuator Location
Top
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Electrical Connection
Screw Terminals
DC Contact Rating
2 A @ 250 V
NEMA Rating
1, 3, 4
Series
BZV6
Body Style (Limit Switch)
Miniature
Number of Poles
1
Mounting Hole - Limit Switch
(2) 0.17 in dia
IP Rating
IP66
Boot Sealed Actuator (Limit Switch)
Yes
Voltage Rating
600VAC/250VDC
Mounting Hole Spacing - Limit Switch
1.63 in
Wiring Entry
1/2 in NPT
Boot Sealed Actuator - Limit Switch
Yes
Operating Force
9 oz to 24 oz
Contact Form
1NO/1NC
Operating Temp. Range
-25 Degrees to 160 Degrees F
Travel
Differential Travel 0.0004 in to 0.0020 in, Maximum Pretravel 0.078 in, Minimum Over Travel 0.219 in
Limit Switch Style
General Purpose Limit Switch
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Actuator Style (Limit Switch)
Plunger
Standards
CE, CSA, UL Listed
AC Contact Rating
15 A @ 600 V
Movement
Release Force 0.25 lb min
Differential Travel
0.002 in
Mounting Hole Horizontal Center to Center Distance
41 mm
Operating Temperature - Maximum
160 Degrees F
NEMA Enclosure Rating
1, 3, 4
Operating Force - Maximum
24 ozf
Mounting Style
Bottom Flange
Body Configuration
Non Plug-In
Number of Mounting Holes
2
Operating Force - Minimum
9 ozf
Operating Temperature - Minimum
-25 Degrees F
Boot Sealed Actuator
Boot Included
Overtravel
0.22 in
Pretravel
0.08 in

Description

Non Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 2A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.97 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 3.04 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 1, 3, 4
