  15. Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

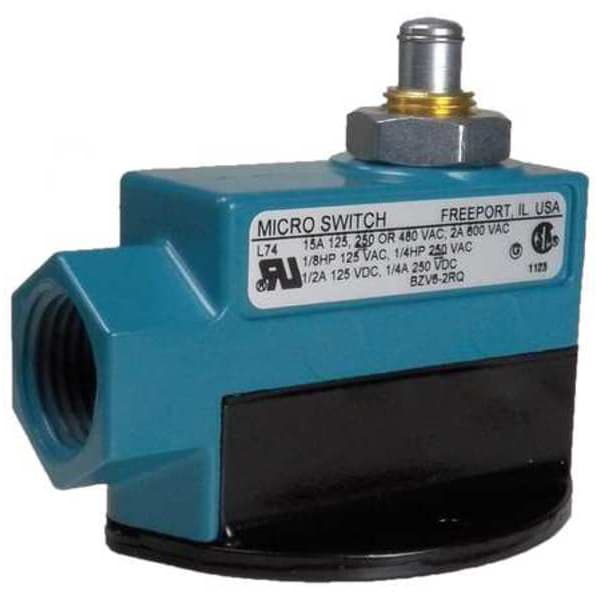

Honeywell Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top BZV6-2RQ - main

Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # BZV6-2RQ

  • Zoro # G4059291

product price: $101.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZV6-2RQ
Zoro #
G4059291
UPC #
-
Country of Origin
United States

Dimensions

Actuator Length
0.75"
Body Depth - Limit Switch
1.0 in
Depth
3.04"
Actuator Length - Limit Switch
0.75 in
Width
1.00"
Body Width - Limit Switch
3.04 in
Body Height - Limit Switch
1.75 in
Height
2.50"
Body Depth
1 in
Overall Depth
1 in
Body Width
3.04 in
Body Height
1.75 in
Mounting Hole Diameter
0.17 in
Overall Width
3.04 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Bottom Flange
Voltage Rating
600VAC/250VDC
Movement
Release Force 0.25 lb min
Standards
CSA, UL
Series
BZ
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Body Style (Limit Switch)
Miniature
Travel
Differential Travel 0.002 in, Maximum Pretravel 0.015 in, Minimum Over Travel 0.219 in
IP Rating
66
Actuator Location
Top
Operating Temp. Range
-25 Degrees to 160 Degrees F
Number of Poles
1
Boot Sealed Actuator (Limit Switch)
No
Operating Force
9 oz to 13 oz
Actuator Location (Limit Switch)
Top
Electrical Connection
Screw Terminals
DC Contact Rating
2A at 250V
Actuator Style
Plunger
Contact Form
1NC/1NO, SPDT
Body Material
Zinc Die Cast
AC Contact Rating
15A at 600V
Mounting Hole - Limit Switch
(2) 0.17 in dia
Mounting Hole Spacing - Limit Switch
1.63 in
Actuator Style (Limit Switch)
Plunger
Basic Actuator Style (Limit Switch)
Plunger
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Contact Form - Limit Switch
1NC/1NO
Limit Switch Style
General Purpose Limit Switch
NEMA Rating
1
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Differential Travel
0.002 in
Operating Temperature - Minimum
-25 Degrees F
Body Configuration
Non Plug-In
Operating Temperature - Maximum
160 Degrees F
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Overtravel
0.22 in
Operating Force - Minimum
9 ozf
Operating Force - Maximum
13 ozf
NEMA Enclosure Rating
1
Mounting Hole Horizontal Center to Center Distance
41 mm
Pretravel
0.02 in
Mounting Style
Bottom Flange

Description

Non Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 2A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.75 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 3.04 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, Mounting - Limit Switch Bottom Flange
