Shop HONEYWELL

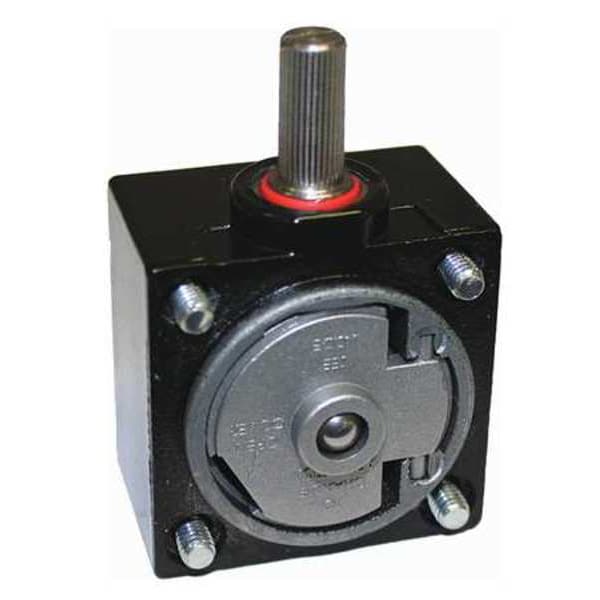

Limit Switch Replacement Rotary Head for LS Series

  • Mfr # LSZ1AB

  • Zoro # G4532455

product price:  $202.99
/ea
Free Shipping & Returns

Key Features

Actuator Style
Roller-Lever Arm
Actuator Location
Side
For Use With
HDLS LSA, Low Temp, Switches
NEMA Rating
1, 3, 4, 4X, 6, 6P
Movement
CW and CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSZ1AB
Zoro #
G4532455
UPC #
-
Country of Origin
United States

Details

Item
Limit Switch Head
Actuator Style
Roller-Lever Arm
Actuator Location
Side
For Use With
HDLS LSA, Low Temp, Switches
NEMA Rating
1, 3, 4, 4X, 6, 6P
Movement
CW and CCW
Operating Temp.
-40 Degrees to 212 Degrees F
IP Rating
Not Rated
Standards
RoHS
Description/Special Features
Low Temperature
Voltage Rating
600V AC/250V DC
Travel
Differential Travel 5 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max
Head Action
Spring Return, Standard
Differential-Travel - Travel To Reset
5 deg DT
Operating Temperature - min
10 deg F (-12 deg C)
Head/Operator
Side Rotary (w/o-operator)
Pre-Travel - Travel To Operate
15 deg PT
Over-Travel/Total-Travel
60 deg OT
Operating Temperature - max
212 deg F (100 deg C)
Type
Limit Switch Operator Head
NEMA Enclosure Rating
1, 3, 4, 4X, 6, 6P
Overtravel
60 Degrees
Compatible with Brand
Honeywell
Pretravel
15 Degrees
Directional Movement
CCW/CW
Operating Temperature - Maximum
212 Degrees F
Series
HDLS
Operating Temperature - Minimum
10 Degrees F
Compatible with Series
HDLS, LSA
Differential Travel
5 Degrees
Operating Torque
4 in-lb
Features
Low Temperature
Over Travel - Rotary
60 Degrees
Differential Travel - Rotary
5 Degrees
Pre-Travel - Rotary
15 Degrees

Description

Limit Switch Head, Actuator Style Roller-Lever Arm, Actuator Location Side, Actuator Length Not Applicable, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating 600V AC/250V DC, Travel Differential Travel 5 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max, Movement CW and CCW, Operating Force Not Applicable, Operating Temp. -40 Degrees to 212 Degrees F, NEMA Rating 1, 3, 4, 4X, 6, 6P, IP Rating Not Rated, Standards RoHS, For Use With HDLS LSA, Low Temp, Switches
