  13. Heavy Duty Limit Switch, 2NC/2NO, Actuator Location: Top

This item is Discontinued.

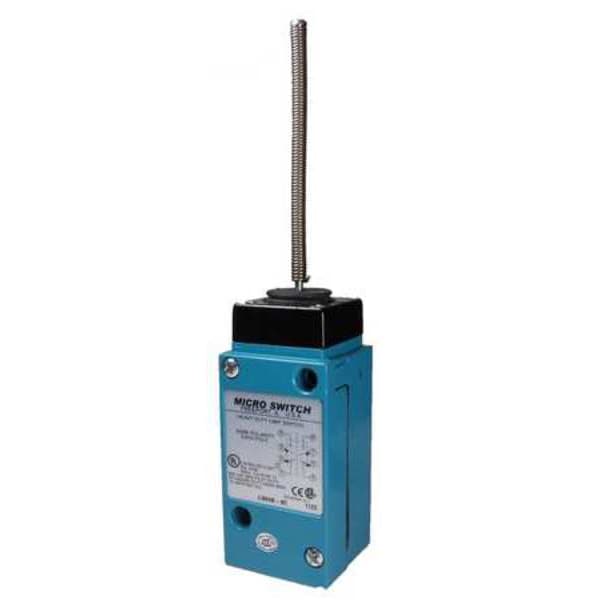

Honeywell Micro Switch Heavy Duty Limit Switch, 2NC/2NO, Actuator Location: Top LSK6B-8C

Heavy Duty Limit Switch, 2NC/2NO, Actuator Location: Top (Discontinued)

  • Mfr # LSK6B-8C
  • Zoro # G3895595
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LSK6B-8C
Zoro #
G3895595
UPC #
-
Country of Origin
United States

Dimensions

Height
4.69"
Width
1.88"
Actuator Length - Limit Switch
5.50 in
Depth
1.79"
Actuator Length
5.5 in
Arm Length - Maximum
5.5 in

Details

Item
Limit Switch
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
Limit Switch Style
Heavy Duty Limit Switch
Actuator Style
Wobble Stick
NEMA Rating
1, 3, 4, 4X, 6, 6P, 12, 13
Electrical Connection
Screw Terminals
Operating Temp. Range
10 Degrees to 200 Degrees F
Voltage Rating
600VAC/250VDC
Actuator Location
Top
Arm Material
Stainless Steel
IP Rating
IP65, IP66, IP67
Amps
10
Operating Force
7 oz
Number of Poles
2
Movement
Wobble
Wiring Entry
1/2"-14 NPT
Standards
CCC, CE, CSA, UL Listed
Contact Form
2NO/2NC
Travel
Pretravel 2 in Radius
Series
LSK
Body Material
Zinc
Operating Temperature - Minimum
10 Degrees F
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Pretravel
2 in
Directional Movement
Omnidirectional
Operating Force - Maximum
7 ozf
Operating Temperature - Maximum
200 Degrees F

Description

Limit Switch, Actuator Location - Limit Switch Top, Contact Form- Switches 2NC/2NO, Actuator Length - Limit Switch 5.50 in, NEMA Rating 1, 3, 4, 4X, 6, 6P, 12, 13, Electrical Connection Screw Terminals, IP Rating IP65, IP66, IP67
