Shop HONEYWELL

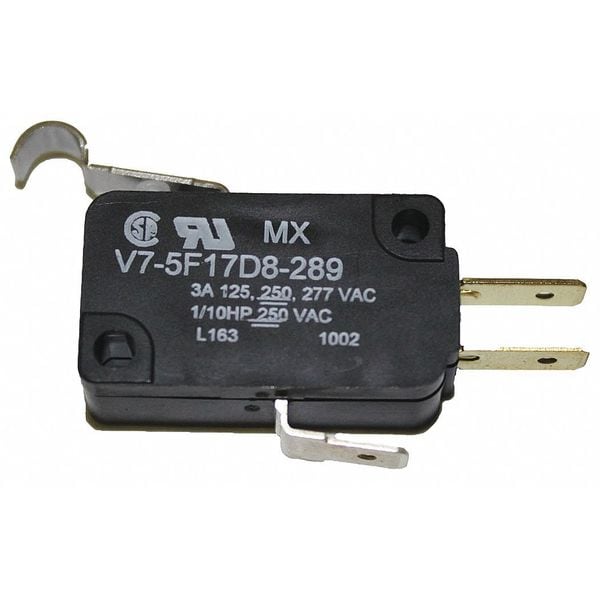

Miniature Snap Action Switch, Lever, Simulated Roller Actuator, SPDT

  • Mfr # V7-5F17D8-289

  • Zoro # G4712687

product price:  $6.59
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Simulated Roller
AC Contact Rating - Snap Action Switch
3 A 125 V, 250 V, 277 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.15 in
Height - Snap Action Switch
0.63 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
V7-5F17D8-289
Zoro #
G4712687
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.15 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Length
1.14"
Mounting Dimension
0.41 x 0.87" Centers
Mounting Dimension - Snap Action Switch
0.87 in Centers
Depth
0.4"
Actuator Length
1.15"
Height
0.63"
Lever Actuator Length
1.15 in
Overall Width
1.14 in
Body Width
1.14 in
Mounting Hole Diameter
1/8 in
Overall Depth
0.4 in
Overall Height
0.63 in
Body Depth
0.4 in
Body Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Simulated Roller
AC Contact Rating - Snap Action Switch
3 A 125 V, 250 V, 277 V
Contact Form- Switches
SPDT
Over Travel
0.069 in
Housing Material
PCT Polyester Thermoplastic
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Voltage Rating
250VAC
Current Rating
3A
Series
V7
Differential Travel
0.029 in
Terminal Type
Quick Connect
Watertight - Snap Action Switch
No
Type of Actuator
Simulated Roller Lever
Max. Pretravel
0.125 in
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Standards
CSA, ENEC, RoHS, UL Listed
Contact Form
1NO/1NC
Operating Force
0.3 oz.
AC Contact Rating
3 A @ 250 V
Overtravel
0.06 in
Differential Travel - Maximum
0.029 in
Operating Temperature - Maximum
365 Degrees F
Operating Force - Minimum
0.08 N
Operating Temperature - Minimum
-40 Degrees F
Electrical Connection
Quick Connect
Actuator Style
Simulated Roller Lever
Operating Force - Maximum
0.3 ozf
Center Mounting Hole Distance
0.88 in
Body Material
Polyester
Pretravel
0.12 in
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Miniature Snap Action Switch, Lever, Simulated Roller, AC Contact Rating - Snap Action Switch 3 A 125 V, 250 V, 277 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.15 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V7
