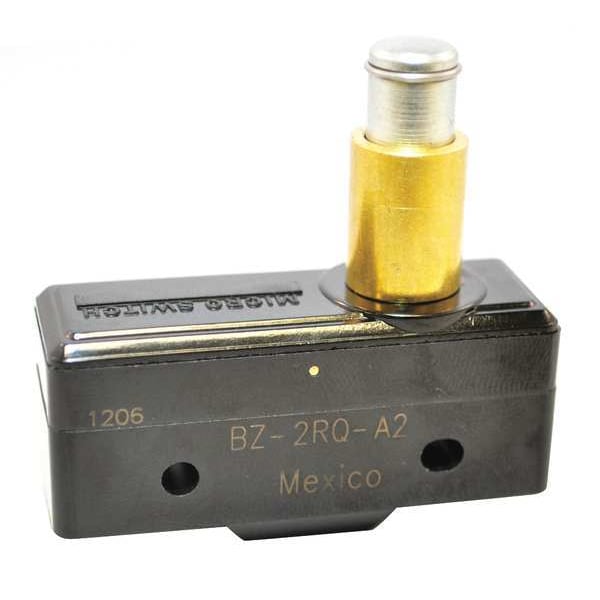

Honeywell Miniature Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 15 A at 120 V AC Contact Rating BZ-2RQ-A2 - main

Miniature Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 15 A at 120 V AC Contact Rating

  • Mfr # BZ-2RQ-A2

  • Zoro # G4707123

product price:  $32.69
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 120 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RQ-A2
Zoro #
G4707123
UPC #
-
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Actuator Length
1.00"
Length
2.0"
Mounting Dimension
1.00" Centers
Depth
0.7"
Height
1.0"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Width
1.94 in
Body Height
1 in
Overall Depth
0.7 in
Overall Height
1 in
Mounting Hole Diameter
1/8 in
Body Width
1.94 in
Body Depth
0.7 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 120 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Operating Temp. Range
-67 Degrees to 185 Degrees F
Housing Material
General Purpose Phenolic
Terminal Type
Screw
Contact Form
1NO/1NC
Type of Actuator
Panel Mount Plunger
Electrical Connection - Snap Action Switch
Screw
Max. Pretravel
0.015 in
Release Force
4 ozf
Current Rating
15A
Differential Travel
0.0004 to 0.0020 in
Over Travel
0.219 in
Watertight - Snap Action Switch
No
Standards
CE, CSA, UL Listed
Series
BZ
Voltage Rating
125VAC
Operating Force
9 to 13 oz
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
15 A @ 125 V
Operating Force - Maximum
13 ozf
Operating Temperature - Maximum
185 Degrees F
Center Mounting Hole Distance
1 in
Differential Travel - Minimum
0.0004 in
Electrical Connection
Screw
Pretravel
0.015 in
Differential Travel - Maximum
0.002 in
Body Material
Phenolic
Operating Temperature - Minimum
-67 Degrees F
Operating Force - Minimum
9 ozf
Actuator Style
Plunger
Overtravel
0.219 in

Description

Miniature Snap Action Switch, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 120 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
