Shop EATON

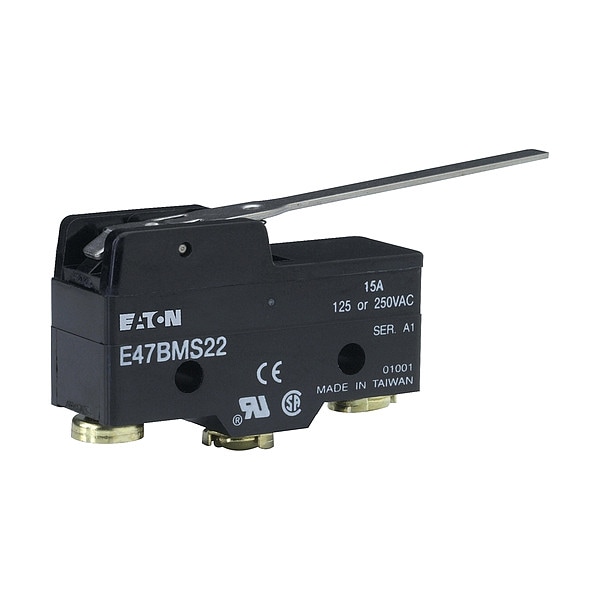

Snap Action Switch, Thermoplastic, Metal

  • Mfr # E47BMS22

  • Zoro # G813321818

product price:
$
26.75
/ea

Key Features

Center Mounting Hole Distance
1 in
Series
E47
Body Material
Thermoplastic
Overall Width
1.2 in
Electrical Connection
Screw Terminal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BMS22
Zoro #
G813321818
UPC #
782113770963
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
1.2 in
Overall Depth
3 in
Overall Height
0.7 in
Manufacturer Warranty Length
1 yr
Lever Actuator Length
2.5 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Center Mounting Hole Distance
1 in
Series
E47
Body Material
Thermoplastic
Electrical Connection
Screw Terminal
Includes
Straight Lever
Operating Temperature - Minimum
-13 Degrees F
Contact Form
1NO/1NC
Standards
CSA, UL Listed
Operating Temperature - Maximum
176 Degrees F
Roller Material
Metal
AC Contact Rating
15 A @ 250 V
Roller Adjustability
Fixed
Actuator Style
Lever
Release Force
0.49 ozf
DC Contact Rating
6 A @ 30 V DC
Roller Position
Top
Operating Force - Maximum
0.69 N
Operating Force - Minimum
0.14 N
Pretravel
0.016 in
Differential Travel - Maximum
0.05 in
Overtravel
.22 in
IP Rating
IP23
Switch Structure
SPDT
Over Travel - Linear
0.22 in
Pre-Travel - Linear
0.016 in
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Series E47
