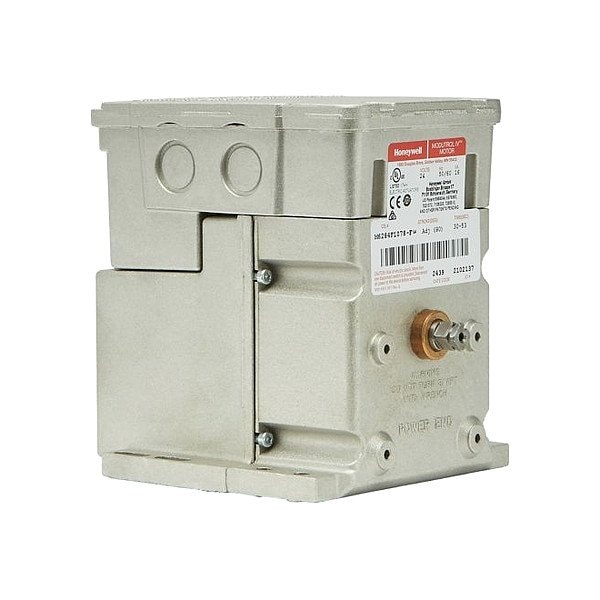

Modutrol Actuator, 5.5 in W
Mfr # M6284F1078-F/U
Zoro # G016381510
product price:Â
$
1,691.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V AC
Standards
UL File No. E4436, Guide No. XAPX for USA and Canada
NEMA Rating
3
Overall Height
6 1/2 in
Housing Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- M6284F1078-F/U
- Zoro #
- G016381510
- UPC #
- 085267327534
- Country of Origin
- United States
- Item
- Modutrol Actuator
- Voltage
- 24V AC
- Standards
- UL File No. E4436, Guide No. XAPX for USA and Canada
- NEMA Rating
- 3
- Housing Material
- Aluminum
- Operating Temperature - Minimum
- -40 Degrees F
- Stroke Degree
- 160 Degrees
- Number of Auxiliary Switches
- 2
- Auxiliary Contact Form
- SPDT
- Cycle Time
- 30 sec
- Installation Orientation
- Horizontal
- Torque
- 150 lb-in
- Operating Temperature - Maximum
- 150 Degrees F
- Power Consumption
- 15 VA
- Return Action
- Non-Spring Return
- Control Signal
- Floating Point
- Electrical Connection Type
- Quick Connect Terminals
- Rated Torque
- 150 lb-in
- Input Voltage
- 24V AC
- Maximum Operating Temperature
- 150 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Application
- Dampers
Description
Modutrol Actuator, Rated Torque 150 lb-in, Input Voltage 24V AC, Electrical Connection Type Quick Connect Terminals, NEMA Rating 3, Stroke Degree 160 Degrees , Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 1/2 in, Application Dampers, Number of Auxiliary Switches 2
