  11. Pneumatic Thermostat, Dual Temperature, Heating, 2 Pipe, Vertical, 1/8 in

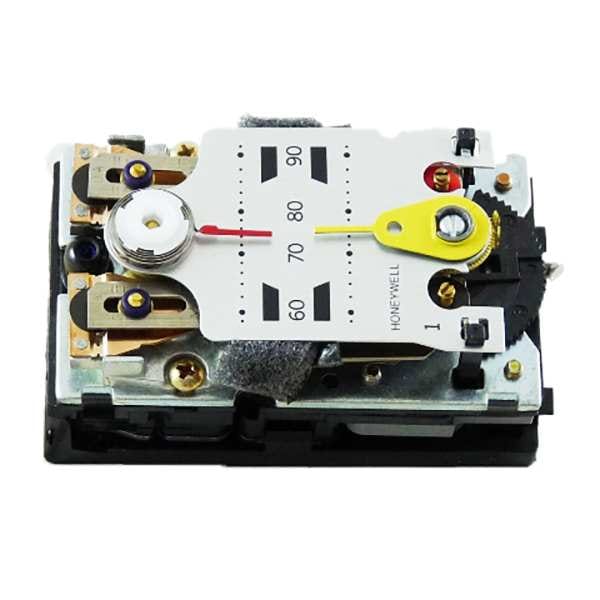

Honeywell Pneumatic Thermostat, Dual Temperature, Heating, 2 Pipe, Vertical, 1/8 in TP971A2003 - main

Pneumatic Thermostat, Dual Temperature, Heating, 2 Pipe, Vertical, 1/8 in

  • Mfr # TP971A2003

  • Zoro # G4803747

product price: $413.99
/ea
Free Shipping & Returns

Key Features

Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Dual Temperature
Air Connections
1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TP971A2003
Zoro #
G4803747
UPC #
-
Country of Origin
United States

Dimensions

Height
3 1/4 in
Width
2 in
Depth
1 5/8 in
Overall Width
2 in
Overall Height
3 1/4 in
Air Connection Outside Diameter
1/8 in
Overall Depth
1 5/8 in

Details

Item
Pneumatic Thermostat
Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Dual Temperature
Air Connections
1/8 in
Temp. Control Range
Day: 59 Degrees to 90 Degrees F, Night: 50 Degrees to 80 Degrees F
Element Type
Bi-Metal
Max. Ambient Temp.
100 Degrees F
Mounting Style
Vertical
Air Consumption
19 scim
Throttling Range
2 Degrees to 10 Degrees F
Max. Air Pressure
25 psi
Application
Heat Only
Sensor Type
Bi-Metallic Spring
Type
1- or 2-Pipe, Single or 2 Temp.
Action Type
Direct Acting
Pneumatic Thermostat Type
Day/Night
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Mounting Direction/Includes Cover
Vertical, No
Compatible System Type
Pneumatic Valves and Damper Actuators
Thermostat Action
Direct - 13 psig (Day), Direct - 18 psig (Night)
Manual Indexing Switch
No
Temperature Scale
Fahrenheit
Temperature Control Range
60 Degrees to 90 Degrees F Day, 50 Degrees to 80 Degrees F Night
Action
Direct
Maximum Control Temperature
90 Degrees F
Minimum Control Temperature
50 Degrees F
Temperature Settings
Dual Temperature
Pneumatic Thermostat Type/Indexing Switch
Day/Night
Maximum Air Pressure
25 psig
Mounting Direction
Vertical
Number of Pipes
2
Number of Dials
Dual
Air Flow Output
High Volume

Description

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating, Dual Temperature, Air Connections 1/8 in, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 100 Degrees F, Mounting Style Vertical, Height 3 1/4 in, Width 2 in, Depth 1 5/8 in, Temp. Control Range Day: 59 Degrees to 90 Degrees F, Night: 50 Degrees to 80 Degrees F, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F
