Honeywell

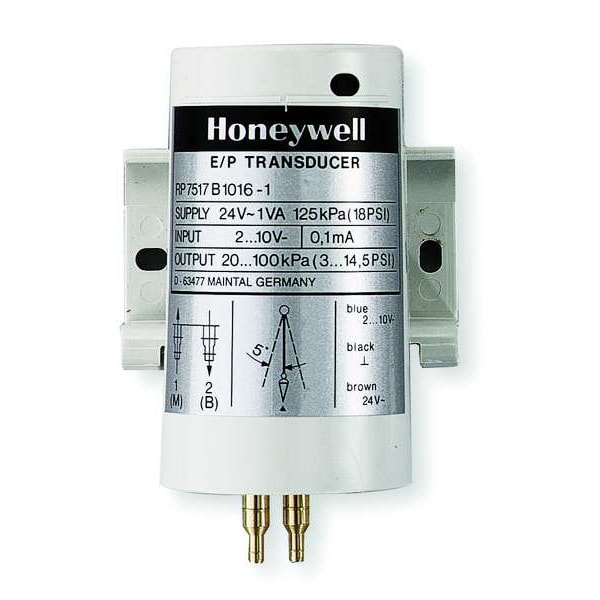

Pneumatic Transducer, 2-10VDC, 0-18 psi

product price: $585.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Input Type Voltage
  • Max. Safe Air PSI 30 psi
  • Control Air Pressure 18 psi
  • Air Connections 5/32 in or 1/4 in Barb
  • Height 2 7/16 in
See all product information

Product Information

Dimensions

Height 2 7/16 in
Width 3 5/8 in
Depth 2 in
Overall Width 2 7/16 in
Air Connection Size 1/4 in
Overall Depth 2 in
Electrical Lead Length 30 in
Overall Length 3 5/8 in

Details

Item Part
Input Type Voltage
Max. Safe Air PSI 30 psi
Control Air Pressure 18 psi
Air Connections 5/32 in or 1/4 in Barb
Standards CE Listed
Input Voltage 2 to 10V DC
Input Amps 0.1 mA Max.
Includes 30 in Leadwires
Air Consumption 0.025 scfm
Application Electronic-Pneumatic Control Systems
Nominal Low End Pressure 0.5 psi
Input Signal Type Current/Voltage
Operating Temperature - Maximum 131 Degrees F
Nominal Pressure Range - Minimum 3 psi
Includes Amplifier Amplifier Included
Operating Pressure - Maximum 30 psi
Control Signal Proportional
Input Voltage Signal - Minimum 2V DC
Input Voltage Signal - Maximum 10V DC
Operating Temperature - Minimum 41 Degrees F
Control Action Direct Acting
Nominal Pressure Range - Maximum 15 psi
Air Connection Type Barbed Hose
Input Current Signal Maximum 0.1 mA
Nominal High End Pressure 17 psi

Description

Electronic Pneumatic Transducer, Air Connection Size 1/4 in, Air Connection Type Barbed Hose, Air Consumption 0.025 scfm, Application Electronic-Pneumatic Control Systems, Control Action Direct Acting, Control Air Pressure 18 psi, Control Signal Proportional, Electrical Lead Length 30 in, Includes Amplifier Amplifier Included, Includes Cover Cover Included, Input Current Signal Maximum 0.1 mA, Input Current Signal Minimum Not Applicable, Input Signal Type Current/Voltage
