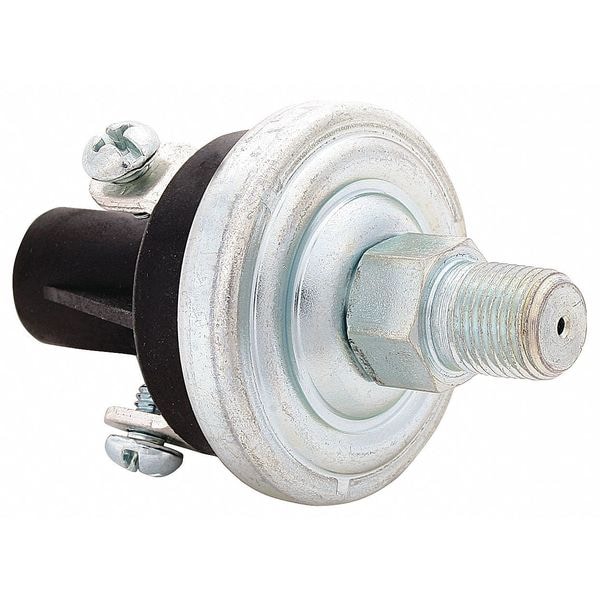

Pressure Switch, Standard, SPST-NO, Not Applicable Ports, 1/8-27" MNPT, 3.1 to 7 psi Range
Mfr # 76575-B00000040-01
Zoro # G4958861
CAD Available
product price: $79.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Action
Standard
Contact Form
SPST-NO
Pressure Connection Type
1/8-27" MNPT
Range
3.1 to 7 psi
Factory On Setting
3.1 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
76575-B00000040-01
Zoro #
G4958861
UPC #
-
Country of Origin
Mexico
Details
Item
Pressure Switch
Action
Standard
Contact Form
SPST-NO
Pressure Connection Type
1/8-27" MNPT
Range
3.1 to 7 psi
Factory On Setting
3.1 psi
Factory Off Setting
7 psi
DC Contact Rating
15A @ 6V, 4A @ 24V, 8A @ 12V
Series
5000
Pressure Switch Electrical Contact Form
SPST-NO
Pressure Switch Range
3.1 to 7 psi
AC Contact Rating
0.5A @ 240V, 1A @ 120V
Actuation Type
Diaphragm
Pressure Switch Differential
3.1 to 7 psi
Pressure Switch Port Type
1/8-27 in MNPT
Pressure Switch Factory On/Off Setting
3.1/7 psi
IP Rating
IP54
Differential Pressure - Maximum
7 psi
Pressure - Minimum
0.5 psi
Differential Pressure - Minimum
3.1 psi
Pressure - Maximum
150 psi
Deadband Adjustability
Adjustable
Proof Pressure
500 psi
CAD Available
Yes
Description
Pressure Switch, Differential 3.1 to 7 psi, Range 3.1 to 7 psi, Port Type 1/8-27 in MNPT, Contact Form 1NO, NEMA Rating Not Rated, Actuation Type Diaphragm, Action Standard, Series 5000, Factory On/Off Setting 3.1/7 psi, AC Contact Rating 0.5 A @ 240 V, 1 A @ 120 V, DC Contact Rating 15 A @ 6 V, 4 A @ 24 V, 8 A @ 12 V
