  13. Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating

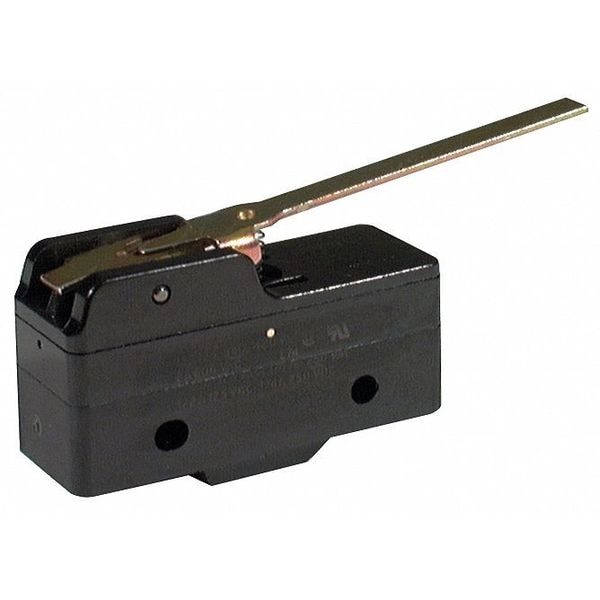

Honeywell Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating BZ-2RW84-A2 - main

Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # BZ-2RW84-A2

  • Zoro # G1053035

product price: $18.99
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RW84-A2
Zoro #
G1053035
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.7 in
Length
1.94"
Depth
0.069"
Mounting Dimension
1.00" Centers
Actuator Length
2.50"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
0.95"
Overall Height
0.95 in
Body Width
1.94 in
Body Height
0.95 in
Lever Actuator Length
2.5 in
Overall Depth
0.7 in
Overall Width
1.94 in
Mounting Hole Diameter
1/8 in
Body Depth
0.7 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Contact Form
1NO/1NC
Max. Pretravel
0.328 in
Type of Actuator
Straight Lever
Terminal Type
Screw
Voltage Rating
125/250/480VAC
Differential Travel
0.007 to 0.050 in
Watertight - Snap Action Switch
No
Series
BZ
Standards
CE, CSA, ENEC, UKCA, UL Listed
Current Rating
15a
Operating Temp. Range
-67 Degrees to 185 Degrees F
Electrical Connection - Snap Action Switch
Screw
Release Force
0.13 ozf
Operating Force
1 oz
Over Travel
0.219 in
AC Contact Rating
15 A @ 125 to 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Type
Basic Limit Switch
Pre-Travel - max
0.328 in (8.33mm) PT
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Operating Temperature
-67°F (-55°C) to 185°F (85°C)
Over-Travel
0.219 in (5.56mm) OT
Differential-Travel - max
0.05 in (1.27mm) DT
Force to Operate
1 oz (0.28N) OF
Head
Lever
Contact Rating
15A 125-480V AC 0.5A 125V DC 0.25A 250V DC
Connection
Screw Terminal
Head Action
Spring Return, Low Force
Operator Configuration
Straight
Pretravel
0.328 in
Electrical Connection
Screw
Center Mounting Hole Distance
1 in
Differential Travel - Minimum
0.007 in
Differential Travel - Maximum
0.05 in
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-67 Degrees F
Overtravel
0.219 in
Operating Force - Maximum
1 ozf
Body Material
Phenolic
Actuator Style
Lever

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
