Shop EATON

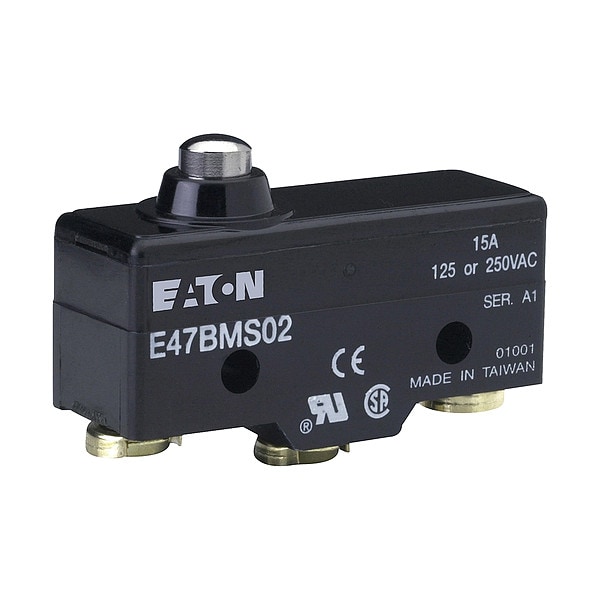

Snap Action Switch, Thermoplastic, Metal

  • Mfr # E47BMS02

  • Zoro # G113321808

product price:  $27.49
/ea

Key Features

Overall Height
1.35 in
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
DC Contact Rating
6 A @ 30 V
Operating Force - Minimum
0 N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BMS02
Zoro #
G113321808
UPC #
782113770826
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
1.35 in
Overall Width
0.69 in
Overall Depth
1.94 in
Manufacturer Warranty Length
1 yr
Lever Actuator Length
0.85 in
Roller Width
0.48 in
Mounting Hole Diameter
4 5/16 mm

Details

Item
Snap Action Switch
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
DC Contact Rating
6 A @ 30 V
Operating Force - Minimum
0 N
Electrical Connection
Solder Lug
Operating Force - Maximum
3.43 N
Series
E47
AC Contact Rating
15 A @ 250 V
Center Mounting Hole Distance
1 in
Pretravel
0.016 in
Includes
Straight Plunger
Body Material
Thermoplastic
Actuator Style
Plunger
Standards
CSA, UL Listed
Contact Form
1NO/1NC
Release Force
4.02 ozf
Roller Material
Metal
Differential Travel - Maximum
0.002 in
Roller Position
Top
Overtravel
0.063 in
Over Travel - Linear
0.063 in
IP Rating
IP23
Mounting Style
Surface
Switch Structure
SPDT
Pre-Travel - Linear
0.016 in
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Series E47
