  7. Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

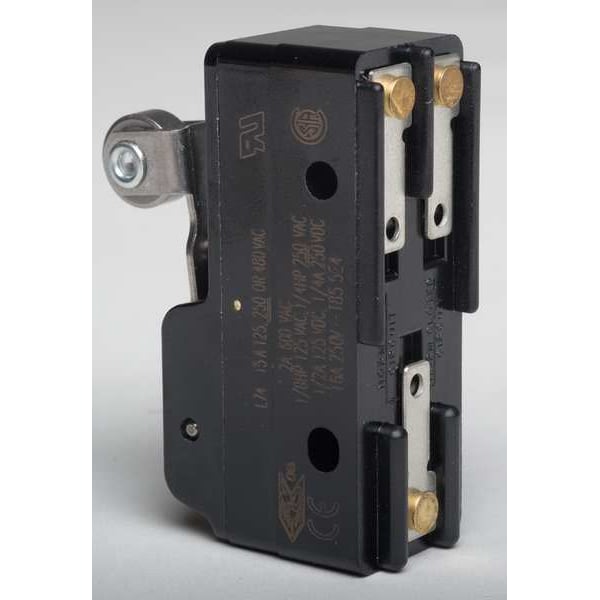

Honeywell Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating BZ-2RW822 - main

Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # BZ-2RW822

  • Zoro # G2382563

product price:  $25.84
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.03 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RW822
Zoro #
G2382563
UPC #
078454917465
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.07 in
Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Actuator Length
1.03"
Height
0.95"
Depth
0.069"
Lever Actuator Length
1.03 in
Mounting Hole Diameter
1/8 in
Body Width
1.94 in
Body Height
0.95 in
Overall Width
1.94 in
Overall Height
0.95 in
Body Depth
0.07 in
Overall Depth
0.07 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Current Rating
15a
Operating Temp. Range
-67 Degrees to 185 Degrees F
Over Travel
0.094 in
Max. Pretravel
0.078 in
Release Force
1.5 ozf
Differential Travel
0.003 to 0.020 in
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
Standards
CE, CSA, ENEC, UKCA, UL Listed
Type of Actuator
Roller Lever
Terminal Type
Solder
Electrical Connection - Snap Action Switch
Solder Lug
Operating Force
6 oz
Voltage Rating
125/250/480VAC
Series
BZ
Housing Material
Phenolic
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
15 A @ 125 to 480 V
Overtravel
0.094 in
Pretravel
0.078 in
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
185 Degrees F
Differential Travel - Maximum
0.02 in
Electrical Connection
Screw
Differential Travel - Minimum
0.003 in
Operating Force - Maximum
6 ozf
Actuator Style
Roller Lever
Operating Temperature - Minimum
-67 Degrees F
Body Material
Phenolic

Description

Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.07 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
