  13. Snap Action Switch, Pin, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating

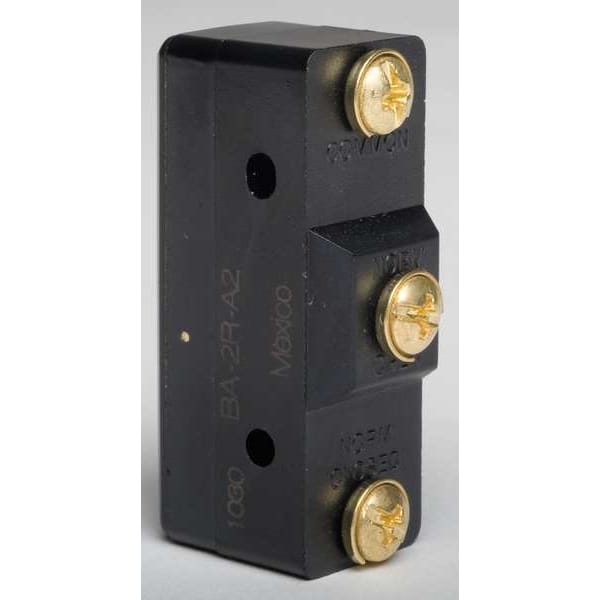

Honeywell Snap Action Switch, Pin, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating BA-2R-A2 - main

Snap Action Switch, Pin, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # BA-2R-A2

  • Zoro # G0583037

product price: $16.99
/ea

Key Features

Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 230 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.95 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BA-2R-A2
Zoro #
G0583037
UPC #
-
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.06 in
Actuator Length
1.94"
Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Depth
0.063"
Height
0.95"
Mounting Hole Diameter
1/8 in
Body Depth
0.06 in
Overall Height
0.95 in
Body Height
0.95 in
Overall Depth
0.06 in
Body Width
1.94 in
Overall Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 230 V
Contact Form- Switches
SPDT
Release Force
10 ozf
Housing Material
Phenolic
Current Rating
20A
Over Travel
0.01 in
Type of Actuator
Pin Plunger
Series
BA
Operating Temp. Range
-67 Degrees to 257 Degrees F
Max. Pretravel
0.05 in
Standards
CE, CSA, ENEC, UKCA, UL Listed
Voltage Rating
125/250/480VAC
Electrical Connection - Snap Action Switch
Screw
Operating Force
14.0 to 22.0 oz
Terminal Type
Screw
Differential Travel
0.0020 to 0.0075 in
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
AC Contact Rating
20 A @ 125 to 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Head
Plunger
Type
Basic Limit Switch
Pre-Travel - max
0.05 in (1.27mm) PT
Over-Travel
0.01 in (0.25mm) OT
Differential-Travel - max
0.0075 in (0.19mm) DT
Connection
Screw Terminal
Connection Configuration
Bottom Facing Screw w/Cup Washer, 6-32 x 0.218 in.
Force to Operate
22 oz (6.12N) OF
Head Action
Spring Return, Standard
Operating Temperature
-67°F (-55°C) to 185°F (85°C)
Contact Rating
20A 125-480V AC 0.5A 125V DC 0.25A 250V DC
Operator Configuration
Pin
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
22 ozf
Body Material
Phenolic
Operating Force - Minimum
14 ozf
Center Mounting Hole Distance
1 in
Differential Travel - Minimum
0.002 in
Pretravel
0.015 in
Actuator Style
Plunger
Electrical Connection
Screw
Overtravel
0.005 in
Operating Temperature - Minimum
-67 Degrees F
Differential Travel - Maximum
0.0075 in

Description

Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 230 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.06 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BA
