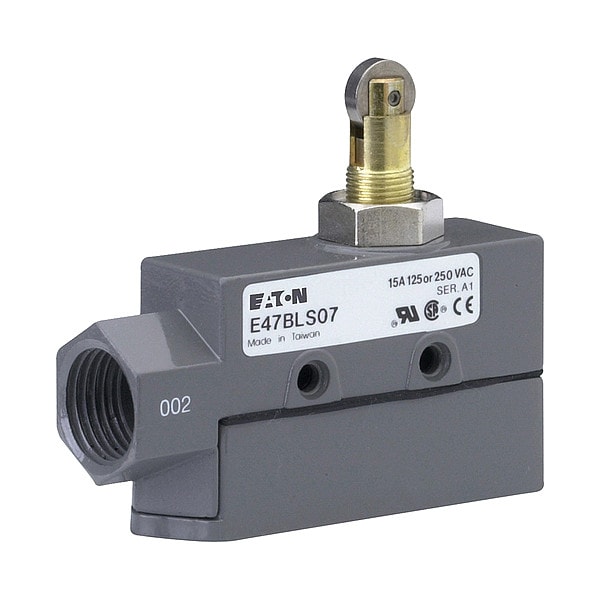

Snap Action Switch, Aluminum, Metal

  • Mfr # E47BLS07
  • Zoro # G813321832
product price:
$
113.99
/ea
Free Shipping & Returns

Key Features

Pretravel
0.016 in
Operating Temperature - Maximum
176 Degrees F
Manufacturer Warranty Length
1 yr
Electrical Connection
Screw Terminal
Release Force
8.82 ozf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS07
Zoro #
G813321832
UPC #
782113771175
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
1 yr
Overall Depth
3.39 in
Overall Height
3.01 in
Overall Width
1 in
Roller Width
0.5 in
Actuator Length
1.96 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Pretravel
0.016 in
Operating Temperature - Maximum
176 Degrees F
Electrical Connection
Screw Terminal
Release Force
8.82 ozf
Series
E47
AC Contact Rating
15 A @ 250 V
DC Contact Rating
6 A @ 30 V
Standards
CSA, UL Listed
Center Mounting Hole Distance
1 in
Includes
Roller Plunger
Actuator Style
Roller-Plunger
Operating Force - Minimum
1.12 N
Operating Force - Maximum
3.4 N
Operating Temperature - Minimum
-13 Degrees F
Contact Form
1NO/1NC
Body Material
Aluminum
Roller Position
Top
Differential Travel - Maximum
0.002 in
Roller Material
Metal
Overtravel
0.142 in
IP Rating
IP23
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Over Travel - Linear
0.142 in
Includes Actuator
Actuator Included
Pre-Travel - Linear
0.016 in
Switch Structure
SPDT
Action
Momentary
NEMA Enclosure Rating
1
Mounting Style
Surface
Differential Travel - Linear
0.002 in
Plunger Adjustability
Fixed
Body Configuration
Non Plug-In
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Series E47
