Shop HONEYWELL

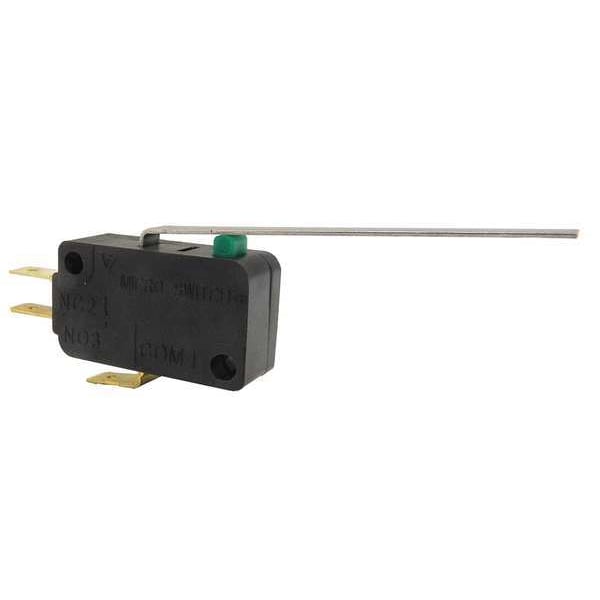

Snap Action Switch - V7 Series, SPDT, Long Lever, 0.1A, Quick Connect

  • Mfr # V7-3S17D8-048

  • Zoro # G4723887

product price:  $6.29
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
0.1 A @ 125 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V7-3S17D8-048
Zoro #
G4723887
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Depth
0.4"
Mounting Dimension
0.41 x 0.87" Centers
Length
1.14"
Height
0.63"
Actuator Length
2.34"
Body Depth
0.4 in
Lever Actuator Length
2.34 in
Mounting Hole Diameter
1/8 in
Body Width
1.14 in
Overall Depth
0.4 in
Overall Width
1.14 in
Body Height
0.63 in
Overall Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
0.1 A @ 125 V
Contact Form- Switches
SPDT
Differential Travel
0.05 in
Release Force
0.02 ozf
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Contact Form
1NO/1NC
Current Rating
0.1A
Series
V7
Voltage Rating
125VAC
Over Travel
3 mm
Standards
CSA, ENEC, RoHS, UL Listed
Type of Actuator
Long Straight Lever
Housing Material
PCT Polyester Thermoplastic
Terminal Type
Quick Connect
Operating Force
0.16N
Max. Pretravel
5.97 mm
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Watertight - Snap Action Switch
No
AC Contact Rating
0.1 A @ 125 V
Center Mounting Hole Distance
0.88 in
Differential Travel - Maximum
0.05 in
Body Material
Polyester
Pretravel
0.235 in
Operating Force - Minimum
0.17 N
Actuator Style
Lever
Overtravel
0.118 in
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
365 Degrees F
Electrical Connection
Quick Connect
Operating Force - Maximum
0.6 ozf
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is housed in a compact thermoplastic enclosure. This switch features a long lever actuator and supports single-pole double-throw (SPDT) operation, allowing it to control circuits with both normally open and normally closed contacts. The device operates at low current levels and can be installed using quick connect terminals.

Key Features:

  • Contact Rating: 0.1A @ 125V AC
  • Actuator Type: Long straight lever, 2.34" length
  • Contact Form: SPDT (1NO/1NC)
  • Body Dimensions: 1.14" width x 0.63" height x 0.4" depth
  • Housing Material: PCT polyester thermoplastic
  • Mounting Hole Distance: 0.87" centers; hole diameter of 1/8"
  • Electrical Connection: Quick connect terminals (3/16")
  • Operating Force: Maximum of 0.6 ozf (0.16N)
  • Temperature Range: -40°F to +185°F standard, options up to +347°F
  • Certifications: CSA, ENEC, RoHS, UL Listed
