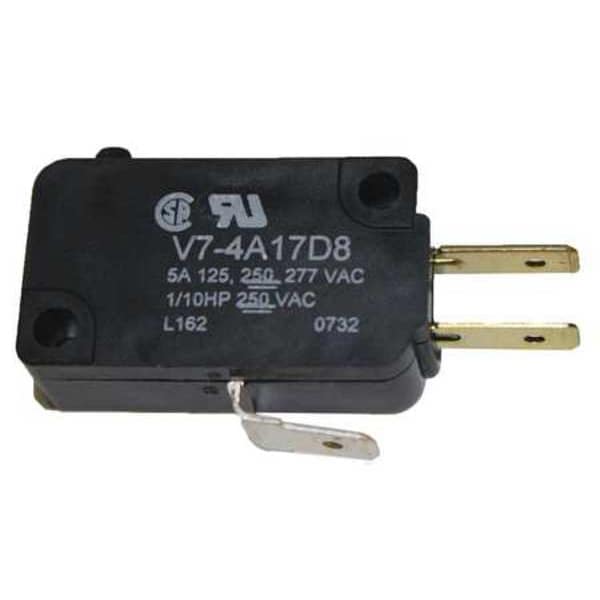

Snap Action Switch - V7 Series, SPDT, Pin Plunger, 5A, Miniature
Mfr # V7-4A17D8
Zoro # G4554541
product price: $4.89
/eaKey Features
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
5 A 125 V, 250 V, 277 V 1/10 HP 250 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
V7-4A17D8
Zoro #
G4554541
UPC #
-
Country of Origin
Mexico
Dimensions
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Length
1.14"
Mounting Dimension
0.41 x 0.87" Centers
Height
0.63"
Depth
0.4"
Overall Depth
0.4 in
Body Height
0.63 in
Overall Width
1.14 in
Mounting Hole Diameter
1/8 in
Body Width
1.14 in
Overall Height
0.63 in
Body Depth
0.4 in
Description
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a pin plunger actuator and is constructed with a thermoplastic polyester housing. This SPDT switch supports specified contact configurations, supporting both normally open and normally closed contacts, and can be used in various control or sensing applications requiring compact dimensions.
Key features:
- AC Contact Rating: 5 A at 125 V, 250 V, or 277 V; rated for up to 1/10 HP at 250 V
- Actuator Style: Pin plunger
- Contact Form: SPDT (Single Pole Double Throw), 1NO/1NC
- Body Dimensions: Width 1.14 in, Height 0.63 in, Depth 0.4 in
- Housing Material: PCT Polyester Thermoplastic
- Electrical Connection: Quick connect terminals (3/16 in)
- Operating Force: Maximum of 25 g (0.9 ozf)
- Travel Specifications: Pretravel of 0.047 in; overtravel of 0.05 in; differential travel between 0.002–0.01 in
- Mounting Hole Distance: Centers at 0.87 in; mounting hole diameter of 1/8 in
- Operating Temperature Range: -40°F to +185°F standard (options available up to +347°F)
- Standards Compliance: CSA, ENEC, RoHS, UL Listed
