Honeywell

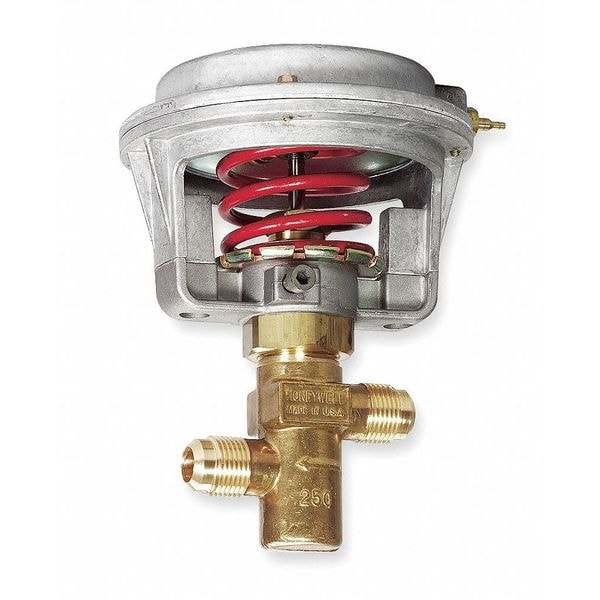

Valve, Pneumatic, 2.5 Cv

product price: $426.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Unitary
  • Max. Safe Air PSI 30 psi
  • Body Pressure Rating (PSI) 250 psi
  • Features Rotating Actuator, Aligns Air Connection with Control Air Piping, Brass Lower Seat is Integral and Upper seat is Removable
  • Close Off Rating @ Main PSI 50 @ 7
See all product information

Product Information

Dimensions

Height (In.) 6 7/8 in
Width (In.) 5 1/8 in
Overall Depth 5 1/8 in
Overall Height 5 1/8 in
Port Connection Size 1/2 in
Overall Length 5 1/8 in

Details

Item Hydronic Globe Valve
Type Unitary
Max. Safe Air PSI 30 psi
Body Pressure Rating (PSI) 250 psi
Features Rotating Actuator, Aligns Air Connection with Control Air Piping, Brass Lower Seat is Integral and Upper seat is Removable
Close Off Rating @ Main PSI 50 @ 7
Function Integral Seat and Brass Plug with Removable Composition Disc Provides Equal Percentage Flow
Pipe (In.) 5/8 OD
Valve Type 2-Way NC
Spring Range (PSI) 9-13
Cv 2.5
Max. Controlled Medium Temp. (F) 250 Degrees F
Application Chilled/Hot Water Control
Specific Valve Action Stem Up to Close
Actuator Control Pressure - Maximum 13 psi
Flow Characteristic Equal Percentage
Actuator Control Pressure - Minimum 9 psi
Operating Temperature - Minimum 35 Degrees F
Operating Temperature - Maximum 250 Degrees F
Distance Between Inlet and Outlet Port 3 1/2 in
Close-Off Pressure 50 psi
Port Connection Type Flare
Body Material Bronze
For Media Water
Coefficient of Volume (Cv) 2.5
Actuator Type Pneumatic
Manufacturer Series VP513B
Includes Actuator Actuator Included
Body Pattern Two-Way
Seat Material Brass
Configuration Offset
Actuator Control Signal Proportional
Valve Action Normally Closed
Stem Material Stainless Steel
Allowable Pressure - Maximum 25 psi

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum 13 psi, Actuator Control Pressure - Minimum 9 psi, Actuator Control Signal Proportional, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Pneumatic, Allowable Pressure - Maximum 25 psi, Application Chilled/Hot Water Control, Body Material Bronze, Body Pattern Two-Way, Close-Off Pressure 50 psi, Coefficient of Volume (Cv) 2.5, Configuration Offset, Distance Between Inlet and Outlet Port 3 1/2 in
