  15. Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle

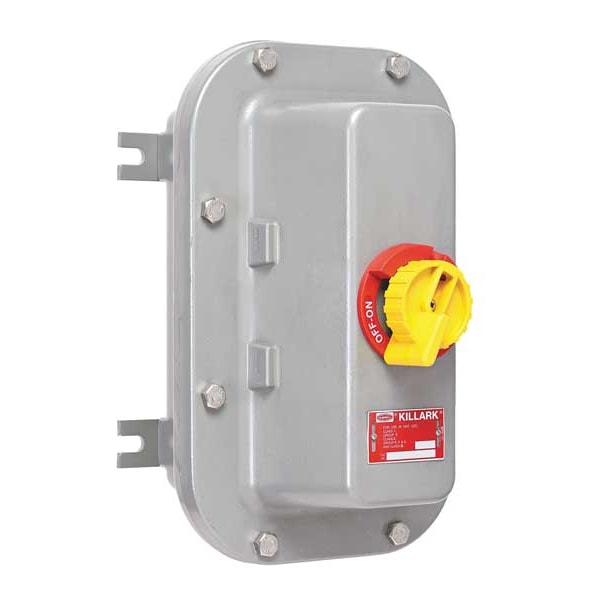

Hubbell Killark Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle B7NFD21A - main

CAD Viewer & Download Files

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3, 4, 4X, 7, 9, Rotary Handle

  • Mfr # B7NFD21A

  • Zoro # G3299737

CAD Available
product price: $2,772.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B7NFD21A
Zoro #
G3299737
UPC #
783936009773
Country of Origin
United States

Dimensions

Height
13 1/16 in
Width
8 1/8 in
Depth
7 13/16 in
Maximum Enclosure Depth
6.31 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3, 4, 4X, 7, 9
HP
50 HP
Voltage
600 V
Handle Color
Gray
Handle Type
Rotary Handle
Housing Material
Aluminum
Standards
cCSAus
Material
Aluminum
Fusible / Nonfusible
Nonfusible
Includes
Adder
Number of Poles
3
Number of Wires
3 Wire, No Neutral
Amps
100 A
Safety Rating
Class I, Div. 1 & 2, Groups B,C,D, Class l, Zones 1 & 2, Groups llB+ H2, llA, Class II, Div. 1 & 2, Groups E,F,G, Class III
Neutral Assembly
Not Available
Material of Construction
Copper Free Aluminum
Series
B7NFD Series
Duty
Hazardous Locations
Operator
Rotary Handle
Mounting
Wall
Use
Hazardous Locations; Outdoors or Indoors in Damp, Wet and Dirty Locations; In Areas where Frequent Washdowns, Heavy Rain, or Water Spray Routinely Occurs
Neutral Assembly Included
No
Electrical Connection
Bolt
Features
316 Stainless Steel Cover Bolts, Gasketed Flange with Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism with Lockout
Maximum Operating Temperature
40 Degrees C
Mounting Style
Surface
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class I, Zone 1 & 2, Groups IIB+H2, IIA, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Horsepower @ 240V AC
30 hp
Horsepower @ 600V AC
50 hp
Horsepower @ 480V AC
50 hp
Mounting Type
Wall
Primary Voltage
600 VAC
Frequency Rating
60 Hz
Action
3P
CSA File Number
LR11714
CAD Available
Yes

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 100 A, Depth 7 3/4 in, Duty Hazardous Locations, Electrical Connection Bolt, Environment Indoor/Outdoor, Features 316 Stainless Steel Cover Bolts, Gasketed Flange with Silicone O-Ring, Gray Powder Polyester Painted Exterior, Rotary Handle Operating Mechanism with Lockout, For Fuse Class Not Applicable, Height 13 in, Horsepower @ 240V AC 30 hp, Horsepower @ 480V AC 50 hp, Horsepower @ 600V AC 50 hp, Housing Material Aluminum
