Shop MOUJEN

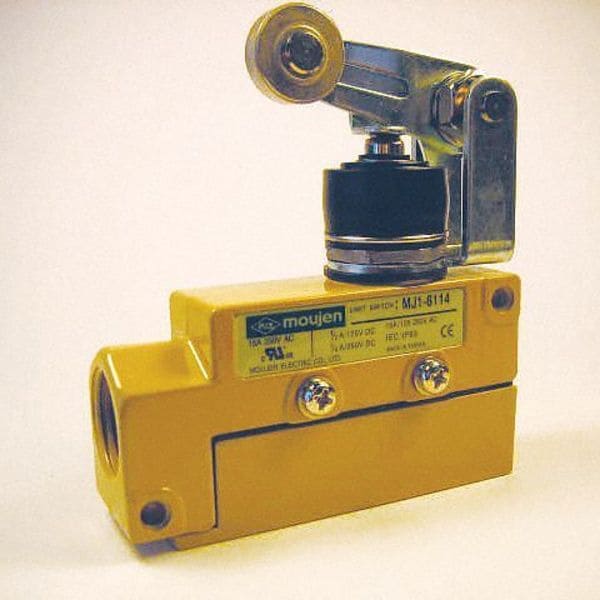

Heavy Duty Limit Switch, Lever, Roller, SPDT

  • Mfr # MJ1-6114
  • Zoro # G0543291
product price:
$
47.29
/ea

Key Features

Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Roller Width
0.75 in
Actuator Style
Hinged Roller-Plunger
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MJ1-6114
Zoro #
G0543291
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Roller Width
0.75 in
Arm Width
0.4 in
Roller Diameter
0.75 in
Arm Length - Maximum
1.56 in
Mounting Hole Diameter
4.5 mm
Arm Depth
1.56 in
Actuator Length
0.25 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Actuator Style
Hinged Roller-Plunger
Contact Form
SPDT
Contact Form - Limit Switch
SPDT
Differential Travel
0.02 in
Series
MJ1-6
Overtravel
0.24 in
Pretravel
0.197 in
Arm Adjustability
Adjustable
Mounting Hole Horizontal Center to Center Distance
1 in
Body Material
Aluminum
IP Rating
IP65
Roller Material
Stainless Steel
Electrical Connection
Screw Terminal
Operating Force - Minimum
6.278 N
Body Configuration
Non Plug-In
Roller Adjustability
Adjustable
Directional Movement
CCW/CW
Roller Position
Side
Over Travel - Linear
6 mm
Includes Actuator
Actuator Included
Action
Momentary
Mounting Hole Vertical Center to Center Distance
23 mm
AC Contact Rating
15A @ 125 V
Mounting Style
Surface
DC Contact Rating
1/2A / 125V DC1/4 / 250V DC
Number of Mounting Holes
2
Boot Sealed Actuator
Boot Included
Lamp Type
No Lamp Module Included
Differential Travel - Linear
0.4 mm
Operating Torque - Maximum
2.2 in-lb
Pre-Travel - Linear
5 mm

Description

Limit Switch, Electrical Connection Screw Terminal, IP Rating IP65
