  9. LEDFix, 13W, 8 1/64"L, 4 3/8"W, 10 7/64"H

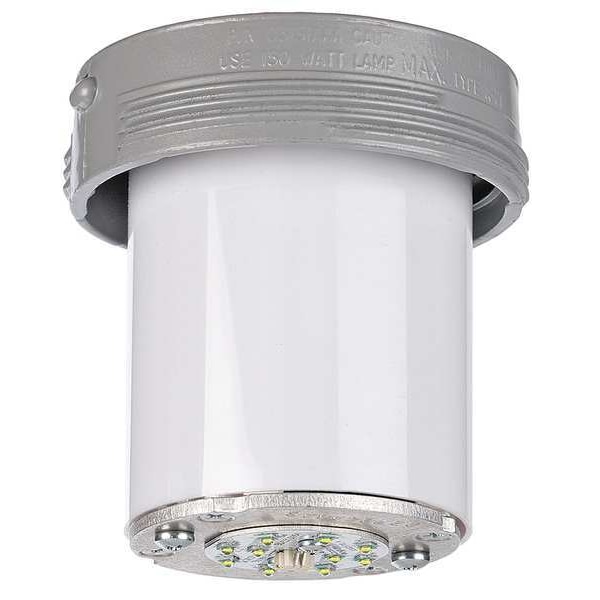

Hubbell Killark LEDFix, 13W, 8 1/64"L, 4 3/8"W, 10 7/64"H VSL1330 - main

LEDFix, 13W, 8 1/64"L, 4 3/8"W, 10 7/64"H

  • Mfr # VSL1330

  • Zoro # G4545721

product price: $407.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA C22.2 No. 137-M1981 Electric Luminaries for Use In Hazardous Locations, UL 1598 Listed for Luminaires, UL 844 Listed for Lighting Fixtures for Hazardous Locations, UL 8750 Listed for LED Lighting
Lumens
1300
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSL1330
Zoro #
G4545721
UPC #
783936090788
Country of Origin
United States

Dimensions

Length
4 3/4 in
Nominal Width
4 in
Height
3 3/4 in
Nominal Height
3 3/4 in
Width
4 in
Nominal Length
4 3/4 in
Overall Length
8 1/64 in
Overall Width
4 3/8 in
Overall Height
10 7/64 in
Dimensions
8.02 in x 4.38 in x 10.11 in

Details

Item
LED Fixture
Standards
CSA C22.2 No. 137-M1981 Electric Luminaries for Use In Hazardous Locations, UL 1598 Listed for Luminaires, UL 844 Listed for Lighting Fixtures for Hazardous Locations, UL 8750 Listed for LED Lighting
Lumens
1300
Lighting Technology
LED
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
13
Max. Fixture Wattage
13 W
Number of Light Bars
0
Housing Finish
Epoxy Powder Coated
Light Color
Cool White
Fixture Type
V Series
Lamp Type
LED
Ambient Temp. Range
-40 Degrees to 131 Degrees F
IP Rating
IP66
Item - Decorative and Surface Mount Fixtures
LED Surface Mount Fixture
Fixture Housing Color
Gray
Finish
Powder Epoxy Paint
Fixture Housing Material
Aluminum
LED Replacement For
60W INC
Lamp Watts - Fixtures
13 W
Lumens Per Watt
100
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Color Rendering Index
70.0
Fixture Voltage
120 to 277V AC
Fixture Rated Life
60,500 hr
Linkable Up To
Unlinkable
Dimmable
No
Fixture Temp. Range
-40 Degrees to 55 Degrees C
Mounting
Ceiling/Pendant/Wall
Color Temperature
5000K
Lamp Watts
13
Lamp Included
Yes
Mounting Bracket Item Number
22P055, 22P056, 22P057, 22P058, 22P059, 22P060, 22P061
Includes
Fixture Body
Emergency Battery Backup
No
Description/Special Features
13W V SERIES LED ASY 120-277V AC 50/60HZ
Fixture Warranty
5 yr.
Application
Killark ‚¬ËœVSL‚¬„¢ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSL‚¬„¢s are sized to replace ‚¬Å“Utility‚¬ type fixtures (incandescent or CFL‚¬„¢s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas
Lens Material
Luminaire
Type
Aluminum LED Fixture
Lumens per Watt
100 lm/W
Safety Rating
Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Division 2, Group F, Group G, Class III, Division 1 and 2, Zone 2
CA Title 24 Compliant
No
Hazardous Class
Class I/Division 2, Class II/Division 2, Class III/Division 1, Class III/Division 2
Max. Ambient Temp.
131 Degrees F
Series
VSL
Shape
Circular
Mounting Style
Ceiling, Pendant, Wall
Min. Ambient Temp.
-40 Degrees F
Temperature Code
T5
Housing Color
Gray
For Max. Bulb Wattage
13 W
Mounting Location
Ceiling
Ingress Protection Rating
66
For Bulb Type
LED
Mounting Type
Luminaire Only
Package Net Weight
5
Cycle Time
10,000 hrs
Voltage Rating
120-277 VAC
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Light Source
LED
Frequency
50/60 Hz
Wattage
13 W

Description

LED Light Fixture, Lighting Technology LED, Lumens 1,300 lm, Overall Height 10 1/8 in, Overall Length 8 in, Overall Width 4 3/8 in, Safety Rating Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Division 2, Group F, Group G, Class III, Division 1 and 2, Zone 2, Color Temperature 5000K, Emergency Battery Backup No, 120 to 277V AC, Dimmable No, Ambient Temp. Range -40 Degrees to 131 Degrees F, CA Title 24 Compliant No, Color Rendering Index 70.0, For Bulb Type LED
