Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

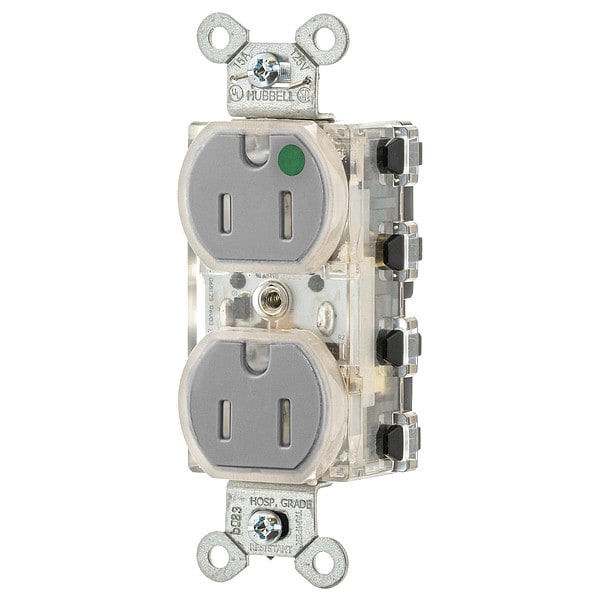

The HUBBELL Extra Heavy Duty Hospital Grade SNAPConnect Receptacle is a duplex straight blade receptacle suitable for modular wiring applications in indoor industrial environments. This snapconnect receptacle features a hospital grade rating and tamper-resistant design, with a modular connector that supports installation and device replacement. The unit includes an LED indicator on the face to show power connection status and includes an audible indicator during terminal engagement.

Key Features of the HUBBELL Extra Heavy Duty Hospital Grade SNAPConnect Receptacle:

• Connection Type: Modular wiring system supports installation with modular wiring system


• Current Rating: Rated for 15 A at 125V AC


• NEMA Configuration: 5-15R duplex outlets with polarized, grounded design


• Tamper Resistant: Tamper-resistant design intended to reduce the risk of unwanted object insertion


• Face Indicator Light: Visual LED indicates power connection status


• Audible Feedback: Audible "snap" indicates terminal engagement during installation


• Operating Temperature Range: -40°F to 167°F (maximum continuous 75°C; minimum -40°C without impact)


• Material Construction: Nylon face, polycarbonate housing, PBT base, brass contacts/grounding, galvanized steel mounting strap, stainless steel self-grounding staple


• Mount Type & Hardware: Flush mount with included zinc plated steel mounting screws; center-to-center height of 3.3 in


• Certifications & Standards: CSA and UL listed; UL 94V-2 flammability rating; dielectric voltage withstands minimum of 2,000V
