  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

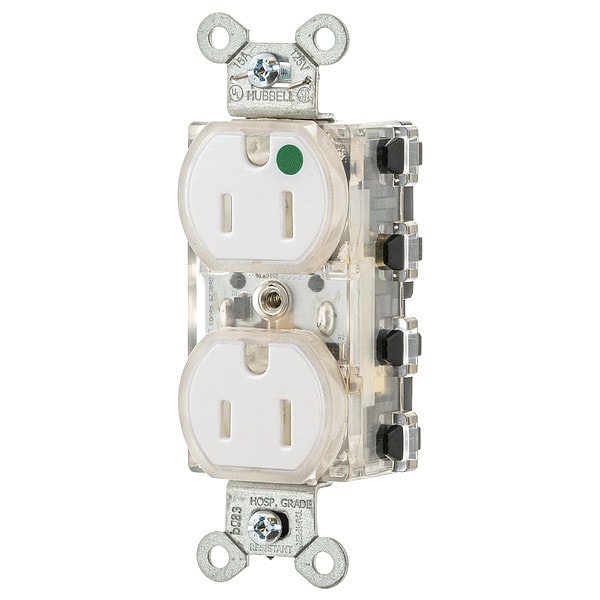

Hubbell Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8200WLTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8200WLTR

  • Zoro # G506905318

product price: $36.79
/ea

Key Features

Receptacle Type
Duplex
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8200WLTR
Zoro #
G506905318
UPC #
-
Country of Origin
China

Dimensions

Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Screw
Visual Indicator Lights
Power Connected
Surge Protection
No
Housing Material
Polycarbonate
Number of Outlets
2
Contact Material
Brass
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
Polarized
Yes
Market
Industrial
For Location
Indoor
GFCI
No
AFCI
No
Grade
Hospital Grade
Connection Orientation
Straight
Automatic Self-grounding Staple
Stainless steel
Ground Contacts
Brass
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Receptacle certified for current interrupting at full rated current
Mounting Strap
Galvanized steel; Brass
Face
Nylon
Mounting Screws
Zinc plated steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Flammability
UL 94V-2
Device Color
White
Auto Self-grounding Clip
PBT

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Face LED Indicator
• Audible SNAP, indicates solid connection
• Reduces Installation Time
• Tamper-Resistant
