Shop HUBBELL

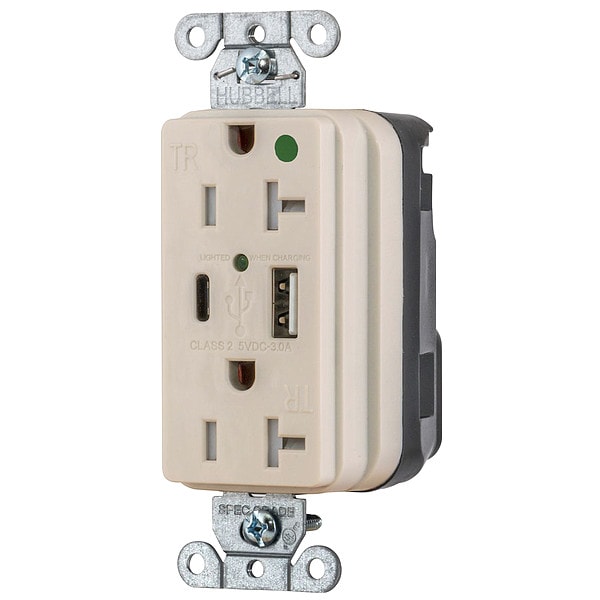

USB Receptacles SNAP8300UACLA

  • Mfr # SNAP8300UACLA

  • Zoro # G906905321

product price:  $54.39
/ea

Key Features

Includes
Mounting Screw, Mounting Strap
Standards
cULus Listed to UL498, UL1310
Wiring Method
Back
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP8300UACLA
Zoro #
G906905321
UPC #
-
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.81 in
Minimum Wire Size
14 AWG
Overall Depth
1.54 in
Maximum Wire Size
10 AWG

Details

Item
Snapconnect receptacle
Includes
Mounting Screw, Mounting Strap
Standards
cULus Listed to UL498, UL1310
Wiring Method
Back
Number of Poles
2
Number of Wires
3
Phase
Single
Number of Outlets
2
UL 94 Flammability Rating
V-2
Power Indicating Light
Yes
Electrical Connection Type
Straight Blade
Market
Residential
Resistance Properties
Tamper Resistant
Current Rating
20 A
Number of USB Ports
2
Maximum Operating Temperature
167 Degrees F
Wire Connection Type
Snap-In Module
USB Charging Capacity
3 A @ 9V
Housing Material
Thermoplastic
Housing Color
Light Almond
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade
Voltage Rating
125V AC
Grounding
Grounded
USB Connection Type
A, C
Includes Mounting Hardware
Yes
GFCI
No
Mount Type
Flush
Receptacle Type
Duplex
USB Standard
1.2
Contact Material
Copper
NEMA Receptacle Configuration
5-20R

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Fast Charge USB Ports
• Combination Ports, One Type A, One Type C
• High Power 3 Amp, up to 9 Volt USB Output
• USB Ports Rated 10,000 Cycles
• Hospital Grade Receptacle
