Hubbell

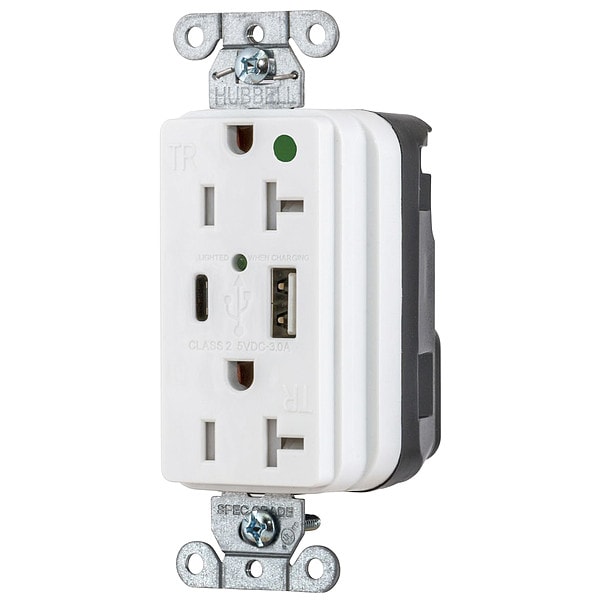

USB Receptacles SNAP8300UACW

product price: $59.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards cULus Listed to UL498, UL1310
  • Wiring Method Back
  • NEMA Configuration 5-20
  • Number of Poles 2
  • Phase Single
See all product information

Product Information

Dimensions

Overall Depth 1.5 in
Maximum Wire Size 10 AWG
Mount Hole Center-to-Center Height 3.81 in
Minimum Wire Size 14 AWG

Details

Standards cULus Listed to UL498, UL1310
Wiring Method Back
NEMA Configuration 5-20
Number of Poles 2
Item Snapconnect receptacle
Phase Single
Number of Wires 3
Includes Mounting Screw, Mounting Strap
Grade Hospital Grade
Grounding Grounded
Maximum Operating Temperature 167 Degrees F
Contact Material Copper
Resistance Properties Tamper Resistant
USB Standard 1.2
Wire Connection Type Modular Wiring
Receptacle Type Duplex
Housing Color White
Mount Type Flush
Electrical Connection Type Straight Blade
USB Charging Capacity 3 A @ 9V
Current Rating 20 A
Number of Outlets 2
Voltage Rating 125V AC
NEMA Receptacle Configuration 5-20R
Housing Material Thermoplastic
GFCI No
Minimum Operating Temperature -40 Degrees F
Market Residential
Wire Connection Types Snap-In Module
Power Indicating Light Yes
Number of USB Ports 2
UL 94 Flammability Rating V-2
USB Connection Type A, C
Includes Mounting Hardware Yes

Description

Snapconnect receptacle, Current Rating 20 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Modular Wiring, Wiring Method Back, GFCI No, Grade Hospital Grade, Grounding Grounded, Housing Material Thermoplastic, Maximum Wire Size 10 AWG
