No Product Image Available

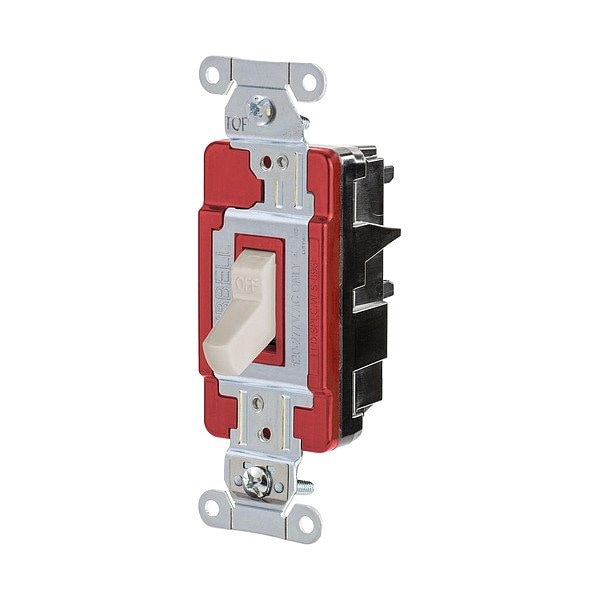

WallSwitch, 1hp, Toggle, 20A, LightAlmond

  • Mfr # HBL1223STLA

  • Zoro # G516437663

product price:  $37.15
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Color
Light Almond
Switch Function
Maintained
Wiring Method
Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1223STLA
Zoro #
G516437663
UPC #
783585963716
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Height
4.2 in
Switch Depth
1.5 in
Maximum Wire Size
10 AWG
Overall Width
1.4 in
Minimum Wire Size
14 AWG
Switch Height
4.2 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Color
Light Almond
Switch Function
Maintained
Wiring Method
Back
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Standards
CSA Certified, Fed Spec, UL Listed
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Contact Material
Silver Alloy
For Environment
Industrial
Market
Industrial
Strap Material
Brass
Housing Material
Polycarbonate
Grounding
Grounded
Current Rating
20 A
Wire Connection Type
Spring Clamp Terminals
Illuminated
No
Number of Switches
1
Pilot Light
No
Horsepower Rating
1 hp
Resistance Properties
Impact Resistant
Nightlight
No

Description

Wall Switch, Color Light Almond, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Impact Resistant, Standards CSA Certified, Fed Spec, UL Listed, Strap Material Brass, Switch Style Toggle
