Shop LEVITON

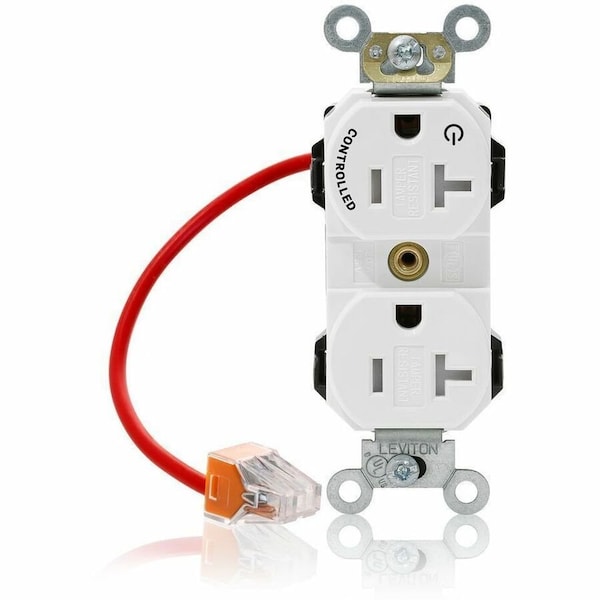

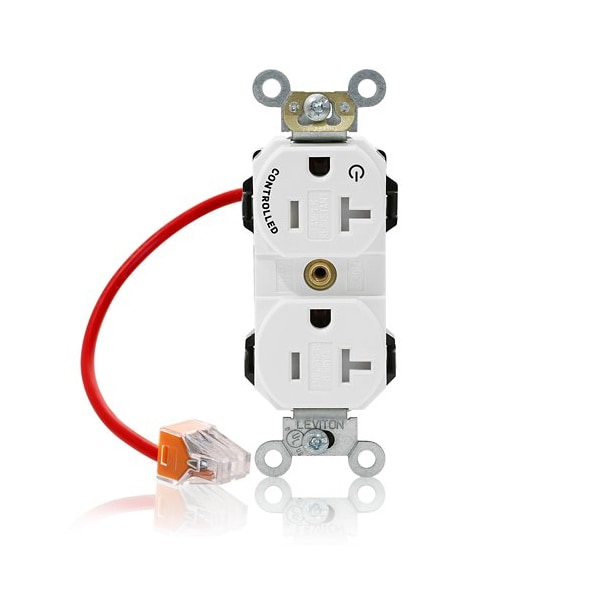

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # MT563-1CW

  • Zoro # G322586487

product price:
$
25.29
/ea

Key Features

NEMA Receptacle Configuration
5-20R
IP Rating
Not Rated
Flange Type
Non-Flanged
Phase
Single
Housing Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MT563-1CW
Zoro #
G322586487
UPC #
78477740965
Country of Origin
Mexico
NEMA Receptacle Configuration
5-20R
IP Rating
Not Rated
Flange Type
Non-Flanged
Phase
Single
Housing Color
White
For Environment
Food and Beverage, Oily/Greasy
NEMA Enclosure Rating
Not Rated
Features
Smooth Face
Shrouded
No
Voltage Rating
125V AC
Number of Poles
2
Item
Plugs and Receptacles
Minimum Operating Temperature
-40 Degrees C
Mount Type
Flush
Cover Type
No Cover
Polarized
Yes
Horsepower Rating
1 hp
Surge Protection
No
AFCI
No
Number of Wires
3
Contact Material
Brass
Market
Industrial
Number of Wall Plates Included
0
Grade
General Use
Number of Outlets
2
Connection Orientation
Straight
Maximum Operating Temperature
60 Degrees C
Standards
CSA, FULS Marking, UL
Wire Connection Type
Snap-In Module
GFCI
No
Current Rating
20 A
Receptacle Type
Duplex
Grounding
Grounded
Number of Gangs
1
Resistance Properties
Tamper Resistant
Housing Material
Nylon
Wiring Method
Back

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
