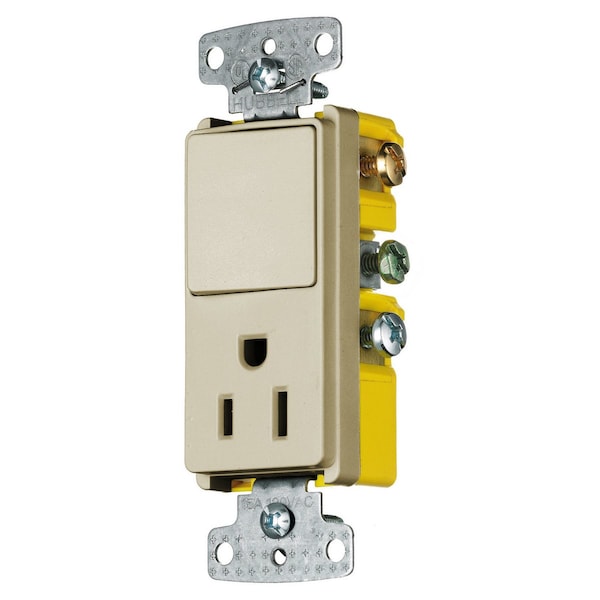

Hubbell Wiring Device-Kellems Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Single Receptacle, 15A 120V AC, Side Wired RCD108I - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Single Receptacle, 15A 120V AC, Side Wired

  • Mfr # RCD108I

  • Zoro # G000701737

product price:  $33.75
/ea

Key Features

Application
Residential
Actuator
Rocker
Contact Configuration
Two Position
Operating Cycles
30,000 Minimum
Number Of Poles
1) Single Pole
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RCD108I
Zoro #
G000701737
UPC #
883778110146
Country of Origin
China

Dimensions

Display Size
Standard Size

Details

Application
Residential
Actuator
Rocker
Contact Configuration
Two Position
Operating Cycles
30,000 Minimum
Number Of Poles
1) Single Pole
Current / Amperage Rating
15 A
Material - Mounting Hardware
Mounting Screws
Wattage
1875
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Current Rating
15 A
Action
Snap Switch
Voltage Rating Description
125 VAC
Voltage Rating
125 VAC
Contact Rating
15A
Item Type
Decorator Switch and Receptacle Combo Devices
Amperage Rating
15 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Connectivity
Side Wired
Industry Standard(s)
CSA Certified UL Listed E3896
Performance
Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute Electrical - Endurance - 30,000 cycles minimum Electrical - Max. working voltage - 120V Electrical - Overload - 1.5 times rating Environmental - Flammability - UL V0 Environmental - Operating temperatures - Maximum continuous 60°C minimum -20°C (without impact) Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only push wire: #14 AWG solid copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 1) Single PoleRocker, 1) Single Receptacle, 15A 120V AC, Side Wired, Ivory
