  9. Connector, 3R, 4X, 12, Female, Blue, 8-2

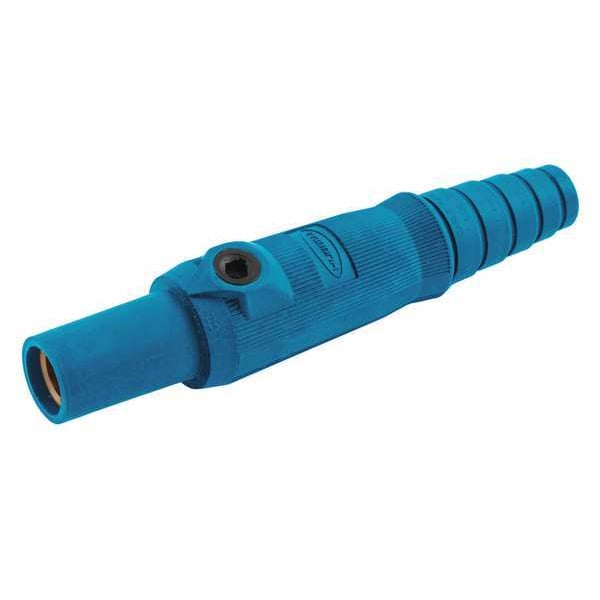

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Female, Blue, 8-2 HBL15FBL - main

Connector, 3R, 4X, 12, Female, Blue, 8-2

  • Mfr # HBL15FBL

  • Zoro # G6136952

product price: $32.29
/ea

Key Features

Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15FBL
Zoro #
G6136952
UPC #
783585458403
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Width
1 in
Overall Length
4.6 in
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
Display Size
Standard

Details

Item
Connector
Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Cable Range
8 to 2
Color
Blue
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Fits
UL1691
Conductor Material
Brass
Amps AC/DC
150AC/DC
Mounting
Plugs, Female
Amps AC
150 A
Gender
Female
Maximum Operating Temperature
75 Degrees C
NEMA Enclosure Rating
12, 3R, 4X
Terminal Connection Type
Double Set Screw
Contact Type
Single Cam
Contact Material
Brass
Compatible with Series
15
Housing Material
Thermoplastic Elastomer
For Location
Indoor
Housing Color
Blue
End Type
Taper Nose
Minimum Operating Temperature
-40 Degrees C
Application
Temporary Electrical Power
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Number Of Conductors
1 Conductor
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Poles
1-Pole
Insulation
Insulated Body
Amperage Rating
150 A
Style
Female
Voltage Rating Description
600V AC/DC
Item Type
Female Plug
Conductor Range
#8 AWG to #2 AWG SC/PPC Wire
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
150 A
Connectivity
Set Screw

Description

The HUBBELL Connector, Series 15, is a female single pole connector intended for use in temporary electrical power distribution applications. It features a blue thermoplastic elastomer housing and accommodates #8 to #2 AWG wire using a double set screw terminal connection. This connector is rated for up to 150 A and supports voltages of 600V AC or 250V DC, compatible with indoor environments as specified by the product ratings.


Key Features of the HUBBELL - Connector,3R, 4X, 12,Female,Blue,8-2:

  • Amperage/Voltage Rating: Rated for up to 150 A and compatible with both 600V AC and 250V DC circuits.

  • Cable Range: Accepts conductor sizes from #8 AWG to #2 AWG SC/PPC wire.

  • Terminal Connection: Double set screw terminal connection accommodates conductor attachment.

  • Contact Material: Brass contacts are used for electrical connections.

  • Housing Material: Thermoplastic elastomer housing material.

  • NEMA Enclosure Ratings: Meets NEMA Types 3R (rainproof), 4X (corrosion-resistant), and 12 (dust-tight) when properly installed indoors or protected by additional means.

  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards including UL1691; meets enclosure type requirements as specified above.

  • Operating Temperature Range: Rated operating temperature range: -40°C minimum (-25°C with impact) to +75°C maximum temperatures.
