  9. Connector, 3R, 4X, 12, Male, Red, 8-2

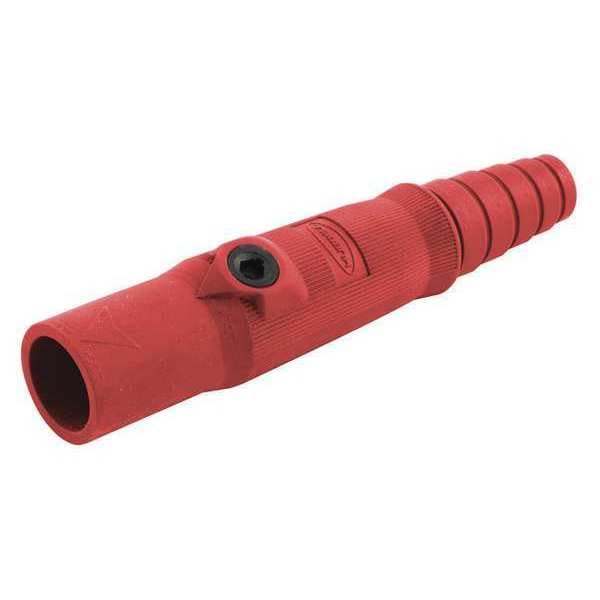

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, Red, 8-2 HBL15MR - main

Connector, 3R, 4X, 12, Male, Red, 8-2

  • Mfr # HBL15MR

  • Zoro # G6189617

product price: $33.19
/ea

Key Features

Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MR
Zoro #
G6189617
UPC #
783585458342
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Overall Width
1 in
Overall Length
4.54 in

Details

Item
Connector
Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Fits
UL1691
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
150AC/DC
Single Pole Device Style
Taper Nose
Cable Range
8 to 2
Conductor Material
Brass
Color
Red
Housing Material
Thermoplastic Elastomer
Terminal Connection Type
Double Set Screw
Gender
Male
End Type
Taper Nose
Housing Color
Red
Compatible with Series
15; Insulgrip
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Voltage Rating Description
600V AC/DC
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Current / Amperage Rating
150 A
Style
Double Set Screw Male
Amperage Rating
150 A

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices
