  9. Connector, 3R, 4X, 12, Male, White, Double

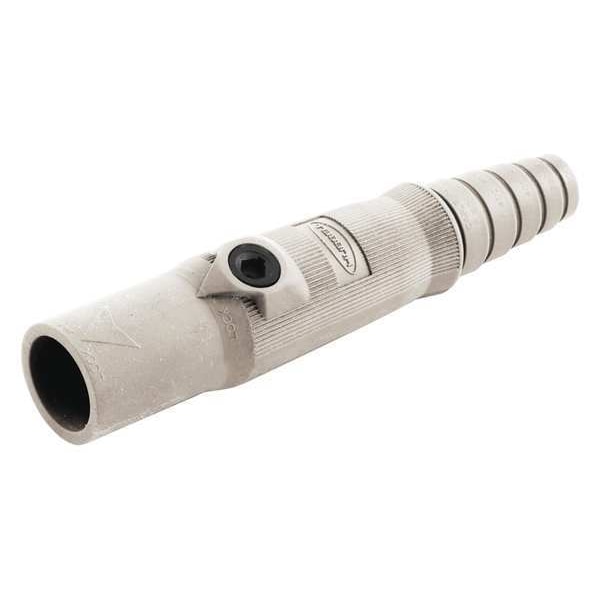

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Male, White, Double HBL15MW - main

Connector, 3R, 4X, 12, Male, White, Double

  • Mfr # HBL15MW

  • Zoro # G6091504

product price: $32.39
/ea

Key Features

Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MW
Zoro #
G6091504
UPC #
783585458335
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Width
1 in
Maximum Wire Size
2 AWG
Overall Length
4.54 in
Minimum Wire Size
8 AWG

Details

Item
Connector
Type
Plugs
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Cable Range
8 to 2
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
150AC/DC
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Fits
UL1691
Material
Thermoplastic Elastomer
Color
White
Compatible with Series
15; Insulgrip
Contact Material
Brass
Gender
Male
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 3R, 4X
Housing Color
White
Terminal Connection Type
Double Set Screw
End Type
Taper Nose
Amperage Rating
150 A
Current / Amperage Rating
150 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Voltage Rating Description
600V AC/DC
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Style
Male

Description

The HUBBELL Connector, Series 15, is a single pole male connector intended for temporary electrical power distribution. It features a taper nose style and accommodates wire sizes from #8 to #2 AWG. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style handle. This connector uses a double set screw terminal connection with brass contacts to provide secure electrical connections.


Key Features of the HUBBELL Series 15 Male Connector:

  • Amperage/Voltage Rating: Rated for up to 150 A at 600V AC or 250V DC

  • Cable Range: Accepts cable sizes from #8 to #2 AWG

  • Terminal Connection Type: Double set screw design for reliable conductor retention

  • Contact Material: Brass contacts support consistent conductivity

  • NEMA Enclosure Ratings: For use in NEMA Types 3R, 4X, and 12 enclosures

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard

  • Compatible Series: Designed for use with Hubbell Series 15 devices; Insulgrip compatible

  • Overall Dimensions: Measures approximately 4.54 inches in length by 1 inch in width
