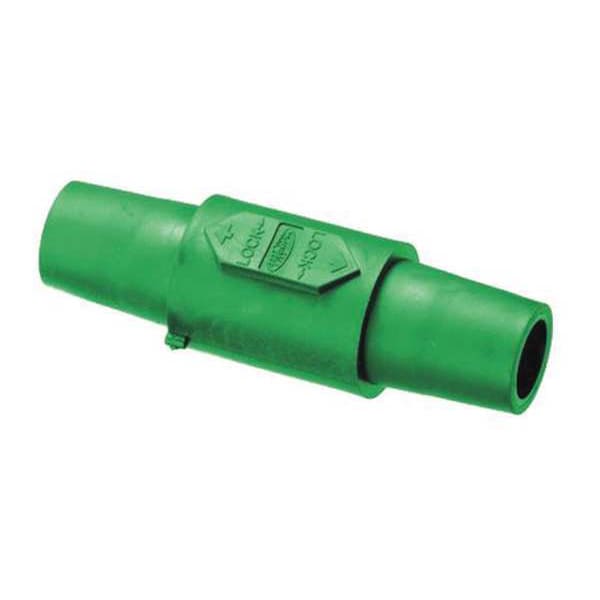

Hubbell Wiring Device-Kellems Double Connector, Grn, Female-Female, Taper HBLDFGN - main

Double Connector, Grn, Female-Female, Taper

  • Mfr # HBLDFGN

  • Zoro # G7143394

product price: $64.19
/ea

Key Features

Type
Gender Reversing
Series
16
Male/Female
Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLDFGN
Zoro #
G7143394
UPC #
783585003337
Country of Origin
China

Dimensions

Overall Height
4.84 in
Overall Width
1.56 in

Details

Item
Double Connector
Type
Gender Reversing
Series
16
Male/Female
Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Amps AC/DC
300/400AC/DC
Color
Green
Fits
UL1691
Standards
cUL, UL
Housing Color
Green
Gender Configuration
Female-Female
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
75 Degrees C
Compatible with Series
16
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Insulation
Insulated Body
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Wattage
360000
Item Type
Gender Reverser
Industry Standard(s)
UL 498 And UL1691
Current / Amperage Rating
400 A
Style
Double Female
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Number Of Pins
1) In, 1) Out
Application
High Ampacity

Description

Double Connector, Contact Material Brass, Current Rating 400 A, Gender Configuration Female-Female, Housing Color Green, Housing Material Thermoplastic Elastomer, NEMA Enclosure Rating 12, 3R, 4X, Voltage Rating 600V AC, 600V DC, Compatible with Series 16, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 4.84 in, Overall Width 1.56 in
